ECQ-E2225KBB

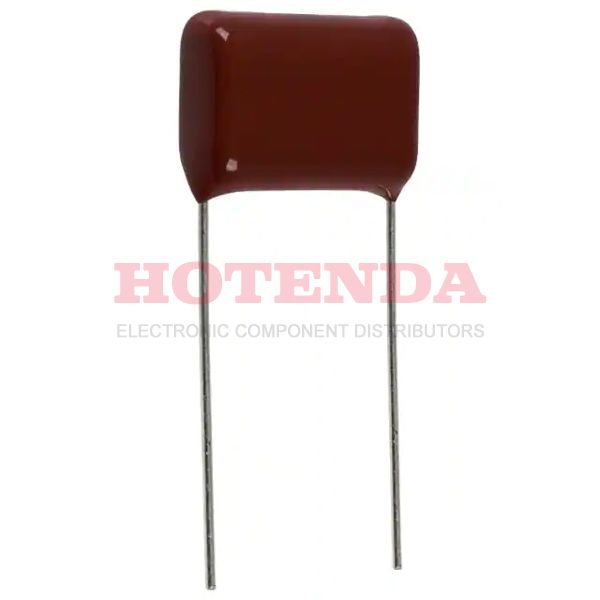

  • ECQ-E2225KBB - ECQ-E(B) 2.2μF Film Capacitor ±10% Radial PC Pins 250V-DC Polyester, Metallized Through Hole
  • ECQ-E2225KBB - ECQ-E(B) 2.2μF Film Capacitor ±10% Radial PC Pins 250V-DC Polyester, Metallized Through Hole

ECQ-E2225KBB

ECQ-E2225KBB

Panasonic Electronic Components

ECQ-E(B) 2.2μF Film Capacitor ±10% Radial PC Pins 250V-DC Polyester, Metallized Through Hole

SOT-23

ECQ-E2225KBB Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 15 Weeks
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Terminal Shape WIRE
Dielectric MaterialPolyester, Metallized
Operating Temperature-40°C~105°C
PackagingBulk
Published 2012
Series ECQ-E(B)
Size / Dimension 0.819Lx0.331W 20.80mmx8.40mm
Tolerance ±10%
JESD-609 Code e3
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications General Purpose
HTS Code8532.25.00.70
Capacitance 2.2μF
Voltage - Rated DC 250V
Packing Method AMMO PACK
Lead Pitch 10mm
Capacitor Type FILM CAPACITOR
Dielectric PET
Lead Spacing0.394 10.00mm
Size Code 8233
Height Seated (Max) 0.811 20.60mm
Length 20.8mm
Width 8.4mm
RoHS StatusROHS3 Compliant
In-Stock:14533 items

Pricing & Ordering

QuantityUnit PriceExt. Price

ECQ-E2225KBB Product Details

ECQ-E2225KBB Overview


Lead spacing is 0.394 10.00mm for this electrical device.In a temperature range of -40°C~105°C, the device can be operated.

ECQ-E2225KBB Features



ECQ-E2225KBB Applications


There are a lot of Panasonic Electronic Components ECQ-E2225KBB applications of film capacitors.

  • Mobile communications
  • Bypassing
  • Snubbering
  • Satellite TV
  • Coupling, decoupling
  • RF Modules
  • VCO's
  • Matching networks
  • Switch mode power supplies
  • Lighting
