ECQ-E2224RJB

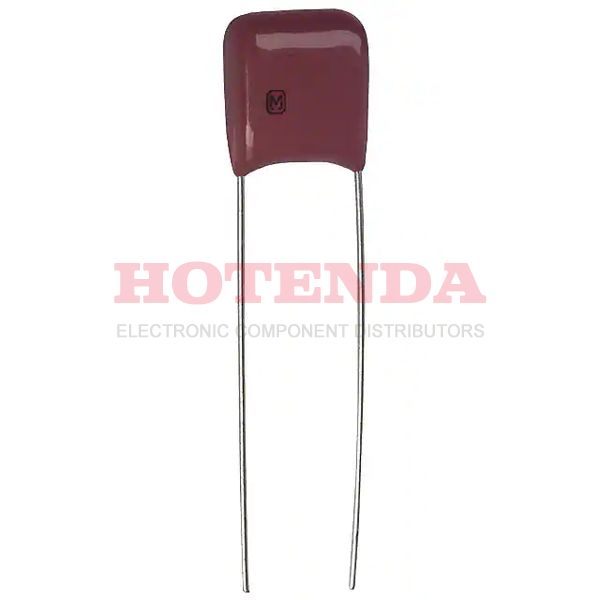

  • ECQ-E2224RJB - ECQ-E(B) 0.22μF Film Capacitor ±5% Radial PC Pins 250V-DC Polyester, Metallized Through Hole
  • ECQ-E2224RJB - ECQ-E(B) 0.22μF Film Capacitor ±5% Radial PC Pins 250V-DC Polyester, Metallized Through Hole

ECQ-E2224RJB

ECQ-E2224RJB

Panasonic Electronic Components

ECQ-E(B) 0.22μF Film Capacitor ±5% Radial PC Pins 250V-DC Polyester, Metallized Through Hole

SOT-23

ECQ-E2224RJB Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 15 Weeks
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Terminal Shape WIRE
Dielectric MaterialPolyester, Metallized
Operating Temperature-40°C~105°C
PackagingTape & Box (TB)
Published 2012
Series ECQ-E(B)
Size / Dimension 0.406Lx0.213W 10.30mmx5.40mm
Tolerance ±5%
JESD-609 Code e3
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications General Purpose
HTS Code8532.25.00.70
Capacitance 0.22μF
Voltage - Rated DC 250V
Packing Method BULK
Lead Pitch 7.5mm
Capacitor Type FILM CAPACITOR
Dielectric PET
Lead Spacing0.295 7.50mm
Size Code 4121
Height Seated (Max) 0.594 15.10mm
Length 10.3mm
Width 5.4mm
RoHS StatusROHS3 Compliant
In-Stock:32126 items

Pricing & Ordering

QuantityUnit PriceExt. Price

ECQ-E2224RJB Product Details

ECQ-E2224RJB Overview


0.295 7.50mm is the lead spacing of this electrical device.Temperatures of -40°C~105°C are suitable for operating the device.

ECQ-E2224RJB Features



ECQ-E2224RJB Applications


There are a lot of Panasonic Electronic Components ECQ-E2224RJB applications of film capacitors.

  • Test and measuring equipment
  • Compact fluorescent lamps (CFL)
  • Snubbering
  • RF Modules
  • Matching networks
  • IGBT
  • Filters
  • Coupling, decoupling
  • Industrial and automotive inverters
  • VCO's
