ECQ-E2183RKF

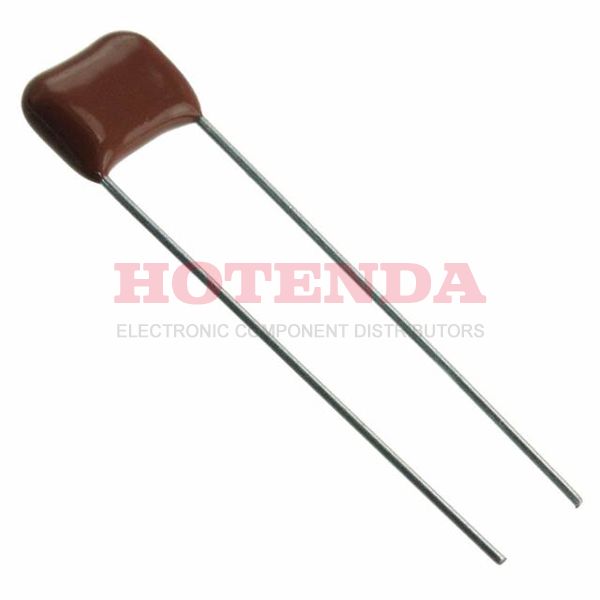

  • ECQ-E2183RKF - ECQ-E(F) 0.018μF Film Capacitor ±10% Radial PC Pins 250V-DC Polyester, Metallized Through Hole
  • ECQ-E2183RKF - ECQ-E(F) 0.018μF Film Capacitor ±10% Radial PC Pins 250V-DC Polyester, Metallized Through Hole

ECQ-E2183RKF

ECQ-E2183RKF

Panasonic Electronic Components

ECQ-E(F) 0.018μF Film Capacitor ±10% Radial PC Pins 250V-DC Polyester, Metallized Through Hole

SOT-23

ECQ-E2183RKF Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 15 Weeks
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Dielectric MaterialPolyester, Metallized
Operating Temperature-40°C~105°C
PackagingTape & Box (TB)
Published 2008
Series ECQ-E(F)
Size / Dimension 0.406Lx0.173W 10.30mmx4.40mm
Tolerance ±10%
Part StatusActive
Moisture Sensitivity Level (MSL) Not Applicable
Termination PC Pins
Max Operating Temperature105°C
Min Operating Temperature -40°C
Applications General Purpose
Capacitance 0.018μF
Voltage - Rated DC 250V
Lead Pitch 7.5mm
Dielectric PET
Lead Spacing0.295 7.50mm
Height Seated (Max) 0.492 12.50mm
Length 10.3124mm
Width 4.3942mm
Radiation HardeningNo
RoHS StatusROHS3 Compliant
In-Stock:61560 items

Pricing & Ordering

QuantityUnit PriceExt. Price

ECQ-E2183RKF Product Details

ECQ-E2183RKF Overview


Electrical devices have 0.295 7.50mm lead spacing.The device is capable of operating at the temperature of -40°C~105°C.

ECQ-E2183RKF Features



ECQ-E2183RKF Applications


There are a lot of Panasonic Electronic Components ECQ-E2183RKF applications of film capacitors.

  • Audio/video equipment
  • Battery management system
  • Mobile communications
  • Blocking
  • Compact fluorescent lamps (CFL)
  • Global positioning systems
  • Bypassing
  • Coupling, decoupling
  • IGBT
  • Switch-mode power supplies
