ECQ-E2105KS

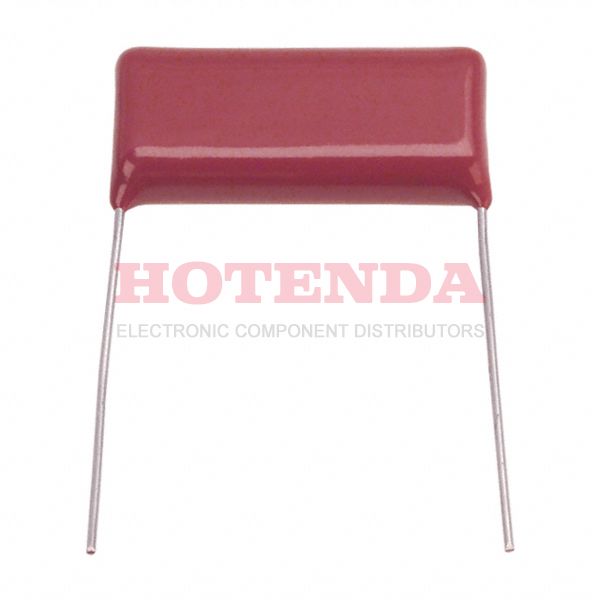

  • ECQ-E2105KS - ECQ-E(K) 1μF Film Capacitor ±10% Radial PC Pins 250V-DC Polyester, Metallized Through Hole
  • ECQ-E2105KS - ECQ-E(K) 1μF Film Capacitor ±10% Radial PC Pins 250V-DC Polyester, Metallized Through Hole

ECQ-E2105KS

ECQ-E2105KS

Panasonic Electronic Components

ECQ-E(K) 1μF Film Capacitor ±10% Radial PC Pins 250V-DC Polyester, Metallized Through Hole

SOT-23

ECQ-E2105KS Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Dielectric MaterialPolyester, Metallized
Operating Temperature-40°C~85°C
PackagingBulk
Published 2006
Series ECQ-E(K)
Size / Dimension 1.220Lx0.295W 31.00mmx7.50mm
Tolerance ±10%
Part StatusObsolete
Moisture Sensitivity Level (MSL) Not Applicable
Termination PC Pins
Max Operating Temperature85°C
Min Operating Temperature -40°C
Applications General Purpose
Capacitance 1μF
Voltage - Rated DC 250V
Lead Pitch 27.5082mm
Lead Length 25mm
Lead Spacing1.083 27.50mm
Height 14mm
Height Seated (Max) 0.571 14.50mm
Length 30.988mm
Width 7.493mm
RoHS StatusNon-RoHS Compliant
Lead Free Contains Lead
In-Stock:1744 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$0.85000$0.85
10$0.52500$5.25
100$0.32340$32.34
500$0.25200$126

ECQ-E2105KS Product Details

ECQ-E2105KS Overview


Electrical devices with 1.083 27.50mm lead spacing are used in this application.Temperatures as low as -40°C~85°C are suitable for the device.

ECQ-E2105KS Features



ECQ-E2105KS Applications


There are a lot of Panasonic Electronic Components ECQ-E2105KS applications of film capacitors.

  • Industrial and automotive inverters
  • Compact fluorescent lamps (CFL)
  • Filters
  • Audio/video equipment
  • Satellite TV
  • Test and measuring equipment
  • Battery management system
  • Bypassing
  • Filtering
  • Snubbering
