Name: ECQ-E12184JF
Brand: Panasonic Electronic Components
SKU: ECQ-E12184JF
Price: 1.09000 USD
Availability: InStock

new-10%

ECQ-E12184JF

Manufacturer part number:ECQ-E12184JF

Manufacturer:Panasonic Electronic Components

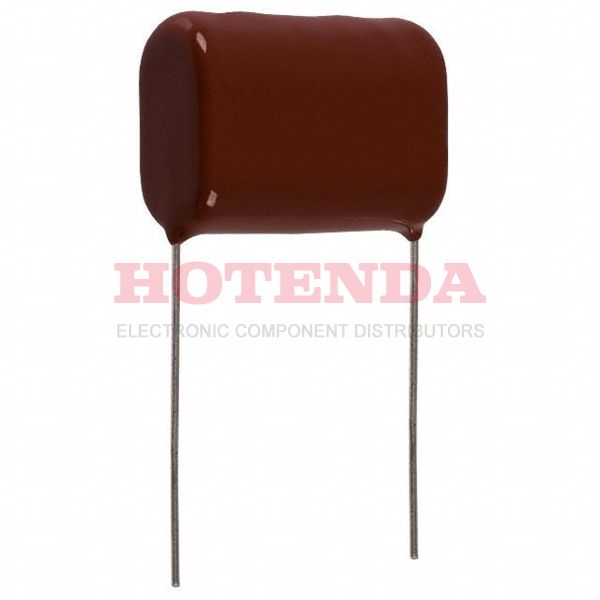

Description:ECQ-E(F) 0.18μF Film Capacitor ±5% Radial PC Pins 1.25kV-DC 125V-AC Polyester, Metallized Through Hole

Case Package:SOT-23

Datasheet:ECQ-E12184JF Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	15 Weeks
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	Radial
Terminal Shape	WIRE
Dielectric Material	Polyester, Metallized
Operating Temperature	-40°C~105°C
Packaging	Bulk
Published	2005
Series	ECQ-E(F)
Size / Dimension	1.220Lx0.512W 31.00mmx13.00mm
Tolerance	±5%
JESD-609 Code	e3
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Number of Terminations	2
Termination	PC Pins
ECCN Code	EAR99
Terminal Finish	Tin (Sn)
Applications	General Purpose
HTS Code	8532.25.00.70
Capacitance	0.18μF
Voltage - Rated DC	1.25kV
Voltage - Rated AC	125V
Lead Pitch	27.5mm
Capacitor Type	FILM CAPACITOR
Dielectric	PET
Lead Spacing	1.083 27.50mm
Rated (DC) Voltage (URdc)	250V
Height Seated (Max)	1.024 26.00mm
Length	31mm
Width	13mm
RoHS Status	ROHS3 Compliant

ECQ-E12184JF Product Details

ECQ-E12184JF Overview

To work properly, systems need a rated (DC) voltage of 250V.1.083 27.50mm is the lead spacing of this electrical device.Temperatures of -40°C~105°C allow the device to operate.
