ECQ-B1H182JF

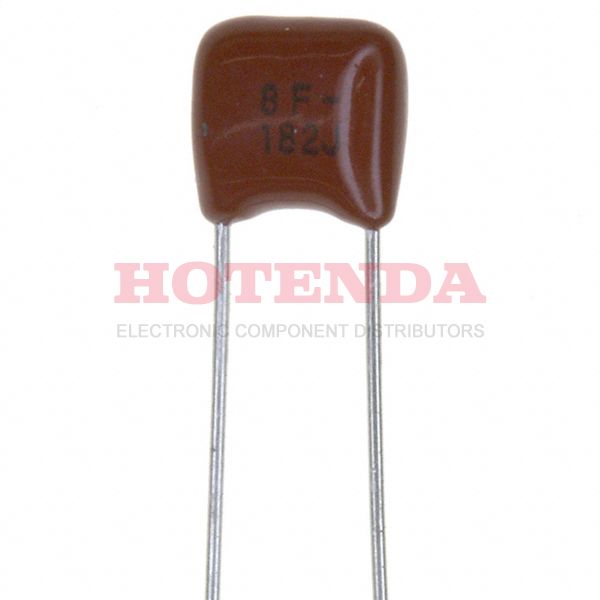

  • ECQ-B1H182JF - ECQ-B(F) 1800pF Film Capacitor ±5% Radial PC Pins 50V-DC Polyester Through Hole
  • ECQ-B1H182JF - ECQ-B(F) 1800pF Film Capacitor ±5% Radial PC Pins 50V-DC Polyester Through Hole

ECQ-B1H182JF

ECQ-B1H182JF

Panasonic Electronic Components

ECQ-B(F) 1800pF Film Capacitor ±5% Radial PC Pins 50V-DC Polyester Through Hole

SOT-23

ECQ-B1H182JF Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Terminal Shape WIRE
Dielectric MaterialPolyester
Operating Temperature-40°C~105°C
PackagingBulk
Published 2006
Series ECQ-B(F)
Size / Dimension 0.276Lx0.118W 7.00mmx3.00mm
Tolerance ±5%
JESD-609 Code e3
Part StatusObsolete
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications General Purpose
HTS Code8532.25.00.70
Capacitance 1800pF
Voltage - Rated DC 50V
Depth 3mm
Reach Compliance Code unknown
Lead Pitch 5.0038mm
Capacitor Type FILM CAPACITOR
Lead Length 20mm
Dielectric PET
Lead Spacing0.197 5.00mm
Lead Diameter 500 μm
Height Seated (Max) 0.276 7.00mm
RoHS StatusRoHS Compliant
Lead Free Lead Free
In-Stock:2662 items

ECQ-B1H182JF Product Details

ECQ-B1H182JF Overview


The lead spacing of this electrical device is 0.197 5.00mm.Devices with a -40°C~105°C temperature capability can be operated.

ECQ-B1H182JF Features



ECQ-B1H182JF Applications


There are a lot of Panasonic Electronic Components ECQ-B1H182JF applications of film capacitors.

  • Industrial and automotive inverters
  • Electronic ballasts
  • Lighting
  • Test and measuring equipment
  • Audio/video equipment
  • RF Modules
  • Switch-mode power supplies
  • Filtering
  • Mobile communications
  • Matching networks
