ECH-U1H392GX5

  • ECH-U1H392GX5 - ECH-U(X) 3900pF Film Capacitor ±2% 1206 (3216 Metric) Solder Pads 50V-DC 50V-AC Polyphenylene Sulfide (PPS), Metallized - Stacked PCB, Surface Mount
  • ECH-U1H392GX5 - ECH-U(X) 3900pF Film Capacitor ±2% 1206 (3216 Metric) Solder Pads 50V-DC 50V-AC Polyphenylene Sulfide (PPS), Metallized - Stacked PCB, Surface Mount

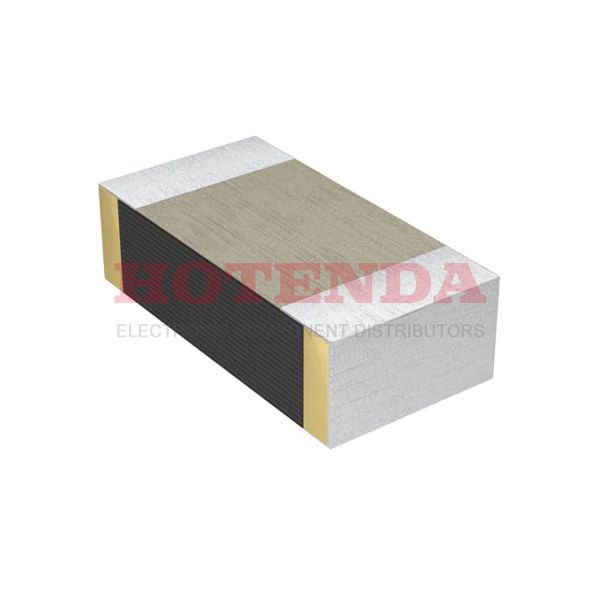

ECH-U1H392GX5

ECH-U1H392GX5

Panasonic Electronic Components

ECH-U(X) 3900pF Film Capacitor ±2% 1206 (3216 Metric) Solder Pads 50V-DC 50V-AC Polyphenylene Sulfide (PPS), Metallized - Stacked PCB, Surface Mount

SOT-23

ECH-U1H392GX5 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 8 Weeks
Contact PlatingCopper, Silver, Tin
Mount PCB, Surface Mount
Mounting Type Surface Mount
Package / Case 1206 (3216 Metric)
Terminal Shape WRAPAROUND
Number of Pins 2
Dielectric MaterialPolyphenylene Sulfide (PPS), Metallized - Stacked
Weight 10.007382mg
Operating Temperature-55°C~125°C
PackagingTape & Reel (TR)
Published 2011
Series ECH-U(X)
Size / Dimension 0.126Lx0.063W 3.20mmx1.60mm
Tolerance ±2%
JESD-609 Code e1
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Solder Pads
ECCN Code EAR99
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Applications General Purpose
Capacitance 3900pF
Voltage - Rated DC 50V
Packing Method TR, EMBOSSED, 7 INCH
Depth 1.6mm
Voltage - Rated AC 50V
Case Code (Metric) 3216
Case Code (Imperial) 1206
Capacitor Type FILM CAPACITOR
Dielectric PPS
Multilayer No
Insulation Resistance3GOhm
Size Code 1306
Voltage 50V
Height 900μm
Height Seated (Max) 0.043 1.10mm
Radiation HardeningNo
REACH SVHC No SVHC
RoHS StatusROHS3 Compliant
Lead Free Lead Free
In-Stock:11962 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$0.518259$0.518259
10$0.488923$4.88923
100$0.461248$46.1248
500$0.435140$217.57
1000$0.410510$410.51

ECH-U1H392GX5 Product Details

ECH-U1H392GX5 Overview


The device has insulation resistance of 3GOhm.In a temperature range of -55°C~125°C, the device can be operated.

ECH-U1H392GX5 Features


3GOhm insulation resistance

ECH-U1H392GX5 Applications


There are a lot of Panasonic Electronic Components ECH-U1H392GX5 applications of film capacitors.

  • Industrial and automotive inverters
  • VCO's
  • RFI for automotive
  • Global positioning systems
  • Blocking
  • Mobile communications
  • Lighting
  • Matching networks
  • Filtering
  • Switch-mode power supplies
