ECH-U1C682GX5

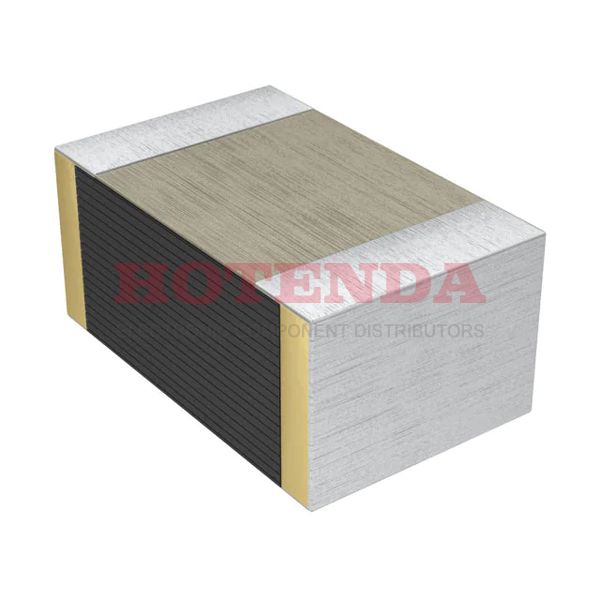

  • ECH-U1C682GX5 - ECH-U(X) 6800pF Film Capacitor ±2% 0805 (2012 Metric) Solder Pads 16V-DC Polyphenylene Sulfide (PPS), Metallized - Stacked
  • ECH-U1C682GX5 - ECH-U(X) 6800pF Film Capacitor ±2% 0805 (2012 Metric) Solder Pads 16V-DC Polyphenylene Sulfide (PPS), Metallized - Stacked

ECH-U1C682GX5

ECH-U1C682GX5

Panasonic Electronic Components

ECH-U(X) 6800pF Film Capacitor ±2% 0805 (2012 Metric) Solder Pads 16V-DC Polyphenylene Sulfide (PPS), Metallized - Stacked

SOT-23

ECH-U1C682GX5 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 8 Weeks
Mounting Type Surface Mount
Package / Case 0805 (2012 Metric)
Surface MountYES
Terminal Shape WRAPAROUND
Dielectric MaterialPolyphenylene Sulfide (PPS), Metallized - Stacked
Operating Temperature-55°C~125°C
PackagingTape & Reel (TR)
Published 2011
Series ECH-U(X)
Size / Dimension 0.079Lx0.049W 2.00mmx1.25mm
Tolerance ±2%
JESD-609 Code e1
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Solder Pads
ECCN Code EAR99
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Applications General Purpose
HTS Code8532.25.00.45
Capacitance 6800pF
Voltage - Rated DC 16V
Packing Method TR, 7 INCH
Capacitor Type FILM CAPACITOR
Rated (DC) Voltage (URdc) 16V
Height Seated (Max) 0.043 1.10mm
Length 2mm
Width 1.25mm
RoHS StatusROHS3 Compliant
In-Stock:10804 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$1.880566$1.880566
10$1.774118$17.74118
100$1.673696$167.3696
500$1.578959$789.4795
1000$1.489584$1489.584

ECH-U1C682GX5 Product Details

ECH-U1C682GX5 Overview


To work properly, systems need a rated (DC) voltage of 16V.In a temperature range of -55°C~125°C, the device can be operated.

ECH-U1C682GX5 Features


a rated (DC) voltage (URdc) of 16V

ECH-U1C682GX5 Applications


There are a lot of Panasonic Electronic Components ECH-U1C682GX5 applications of film capacitors.

  • Coupling, decoupling
  • Filters
  • IGBT
  • Compact fluorescent lamps (CFL)
  • RF Modules
  • Electronic ballasts
  • RFI for automotive
  • Satellite TV
  • Audio/video equipment
  • Filtering
