ECH-U1C332JX5

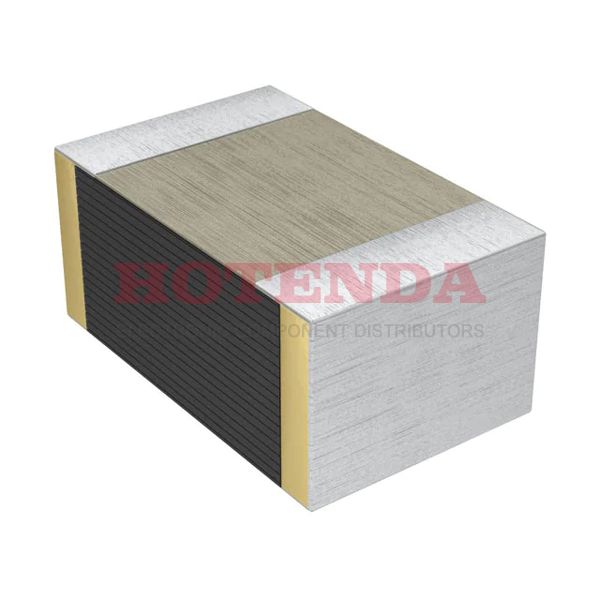

  • ECH-U1C332JX5 - ECH-U(X) 3300pF Film Capacitor ±5% 0805 (2012 Metric) Solder Pads 16V-DC Polyphenylene Sulfide (PPS), Metallized - Stacked PCB, Surface Mount
  • ECH-U1C332JX5 - ECH-U(X) 3300pF Film Capacitor ±5% 0805 (2012 Metric) Solder Pads 16V-DC Polyphenylene Sulfide (PPS), Metallized - Stacked PCB, Surface Mount

ECH-U1C332JX5

ECH-U1C332JX5

Panasonic Electronic Components

ECH-U(X) 3300pF Film Capacitor ±5% 0805 (2012 Metric) Solder Pads 16V-DC Polyphenylene Sulfide (PPS), Metallized - Stacked PCB, Surface Mount

SOT-23

ECH-U1C332JX5 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 8 Weeks
Contact PlatingCopper, Silver, Tin
Mount PCB, Surface Mount
Mounting Type Surface Mount
Package / Case 0805 (2012 Metric)
Terminal Shape WRAPAROUND
Number of Pins 2
Material Ceramic
Dielectric MaterialPolyphenylene Sulfide (PPS), Metallized - Stacked
Weight 5.499807mg
Operating Temperature-55°C~125°C
PackagingTape & Reel (TR)
Published 2011
Series ECH-U(X)
Size / Dimension 0.079Lx0.049W 2.00mmx1.25mm
Tolerance ±5%
JESD-609 Code e1
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Solder Pads
ECCN Code EAR99
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Applications General Purpose
Voltage - Rated 16V
Capacitance 3300pF
Voltage - Rated DC 16V
Packing Method TR, 7 INCH
Depth 1.25mm
Case Code (Metric) 2012
Case Code (Imperial) 0805
Capacitor Type FILM CAPACITOR
Dielectric PPS
Insulation Resistance3GOhm
Voltage 16V
Height 900μm
Height Seated (Max) 0.043 1.10mm
Radiation HardeningNo
REACH SVHC No SVHC
RoHS StatusROHS3 Compliant
Lead Free Lead Free
In-Stock:16902 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$0.365271$0.365271
10$0.344596$3.44596
100$0.325090$32.509
500$0.306689$153.3445
1000$0.289329$289.329

ECH-U1C332JX5 Product Details

ECH-U1C332JX5 Overview


The device has a resistance of 3GOhm.Temperatures of -55°C~125°C allow the device to operate.

ECH-U1C332JX5 Features


3GOhm insulation resistance

ECH-U1C332JX5 Applications


There are a lot of Panasonic Electronic Components ECH-U1C332JX5 applications of film capacitors.

  • Matching networks
  • Coupling, decoupling
  • Blocking
  • Test and measuring equipment
  • Battery management system
  • Filters
  • Switch-mode power supplies
  • Compact fluorescent lamps (CFL)
  • Switch mode power supplies
  • Filtering
