ECH-U1C183JX5

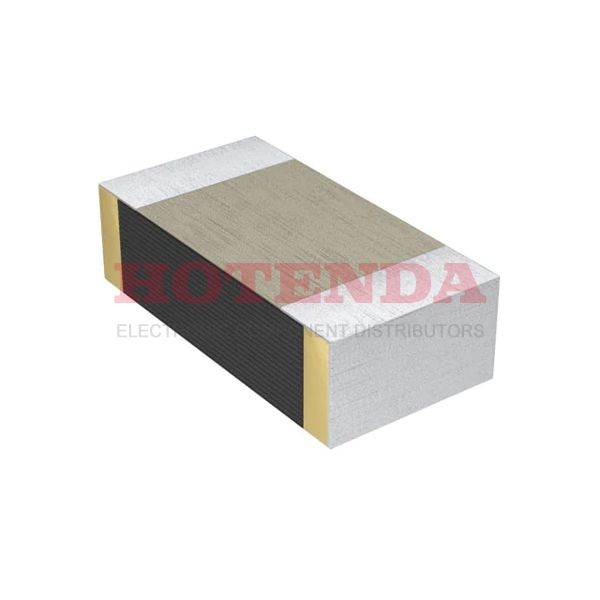

  • ECH-U1C183JX5 - ECH-U(X) 0.018μF Film Capacitor ±5% 1206 (3216 Metric) Solder Pads 16V-DC Polyphenylene Sulfide (PPS), Metallized - Stacked PCB, Surface Mount
  • ECH-U1C183JX5 - ECH-U(X) 0.018μF Film Capacitor ±5% 1206 (3216 Metric) Solder Pads 16V-DC Polyphenylene Sulfide (PPS), Metallized - Stacked PCB, Surface Mount

ECH-U1C183JX5

ECH-U1C183JX5

Panasonic Electronic Components

ECH-U(X) 0.018μF Film Capacitor ±5% 1206 (3216 Metric) Solder Pads 16V-DC Polyphenylene Sulfide (PPS), Metallized - Stacked PCB, Surface Mount

SOT-23

ECH-U1C183JX5 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 8 Weeks
Mount PCB, Surface Mount
Mounting Type Surface Mount
Package / Case 1206 (3216 Metric)
Terminal Shape WRAPAROUND
Number of Pins 2
Material Ceramic
Dielectric MaterialPolyphenylene Sulfide (PPS), Metallized - Stacked
Weight 10.007382mg
Operating Temperature-55°C~125°C
PackagingTape & Reel (TR)
Published 2011
Series ECH-U(X)
Size / Dimension 0.126Lx0.063W 3.20mmx1.60mm
Tolerance ±5%
JESD-609 Code e1
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Solder Pads
ECCN Code EAR99
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Applications General Purpose
Voltage - Rated 16V
Capacitance 0.018μF
Voltage - Rated DC 16V
Packing Method TR, EMBOSSED, 7 INCH
Depth 1.6mm
Case Code (Metric) 3216
Case Code (Imperial) 1206
Capacitor Type FILM CAPACITOR
Dielectric PPS
Multilayer No
Insulation Resistance3GOhm
Size Code 1306
Voltage 16V
Life (Hours) 500 hours
Dissipation Factor0.6 %
Height 900μm
Height Seated (Max) 0.043 1.10mm
Radiation HardeningNo
REACH SVHC No SVHC
RoHS StatusROHS3 Compliant
In-Stock:13969 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$0.358057$0.358057
10$0.337789$3.37789
100$0.318669$31.8669
500$0.300632$150.316
1000$0.283614$283.614

ECH-U1C183JX5 Product Details

ECH-U1C183JX5 Overview


As a result of the device, there is 3GOhm insulation resistance.-55°C~125°C is the maximum temperature at which the device can operate.

ECH-U1C183JX5 Features


3GOhm insulation resistance

ECH-U1C183JX5 Applications


There are a lot of Panasonic Electronic Components ECH-U1C183JX5 applications of film capacitors.

  • Industrial and automotive inverters
  • RFI for automotive
  • Test and measuring equipment
  • Bypassing
  • Compact fluorescent lamps (CFL)
  • Lighting
  • Satellite TV
  • Switch-mode power supplies
  • Coupling, decoupling
  • Snubbering
