ECH-S1H473GZ

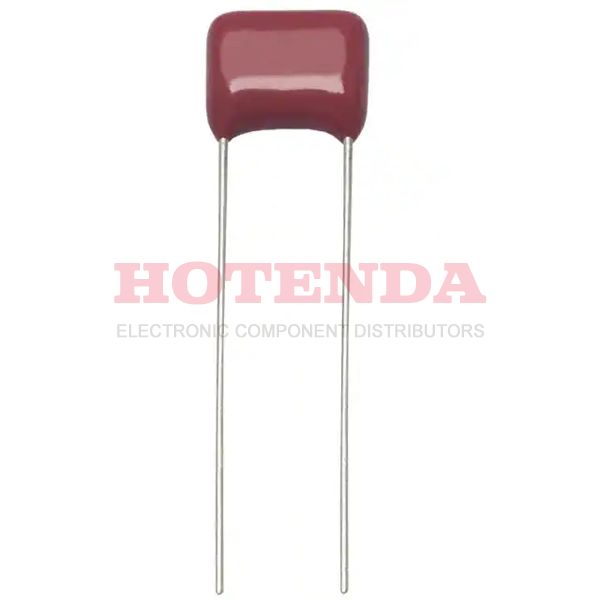

  • ECH-S1H473GZ - ECHS(Z) 0.047μF Film Capacitor ±2% Radial PC Pins 50V-DC Polyphenylene Sulfide (PPS) Through Hole
  • ECH-S1H473GZ - ECHS(Z) 0.047μF Film Capacitor ±2% Radial PC Pins 50V-DC Polyphenylene Sulfide (PPS) Through Hole

ECH-S1H473GZ

ECH-S1H473GZ

Panasonic Electronic Components

ECHS(Z) 0.047μF Film Capacitor ±2% Radial PC Pins 50V-DC Polyphenylene Sulfide (PPS) Through Hole

SOT-23

ECH-S1H473GZ Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Terminal Shape WIRE
Dielectric MaterialPolyphenylene Sulfide (PPS)
Operating Temperature-40°C~125°C
PackagingBulk
Published 2006
Series ECHS(Z)
Size / Dimension 0.472Lx0.197W 12.00mmx5.00mm
Tolerance ±2%
JESD-609 Code e3
Part StatusObsolete
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications High Frequency, Switching
HTS Code8532.25.00.70
Capacitance 0.047μF
Voltage - Rated DC 50V
Depth 5mm
Reach Compliance Code unknown
Lead Pitch 7.493mm
Capacitor Type FILM CAPACITOR
Dielectric PPS
Lead Spacing0.295 7.50mm
Lead Diameter 600 μm
Height Seated (Max) 0.465 11.80mm
RoHS StatusRoHS Compliant
In-Stock:2047 items

ECH-S1H473GZ Product Details

ECH-S1H473GZ Overview


This electrical device has a 0.295 7.50mm lead spacing.A temperature of -40°C~125°C is suitable for operation of the device.

ECH-S1H473GZ Features



ECH-S1H473GZ Applications


There are a lot of Panasonic Electronic Components ECH-S1H473GZ applications of film capacitors.

  • Satellite TV
  • Electronic ballasts
  • Filtering
  • Mobile communications
  • IGBT
  • Battery management system
  • VCO's
  • Global positioning systems
  • RFI for automotive
  • Filters
