DZ2S082M0L

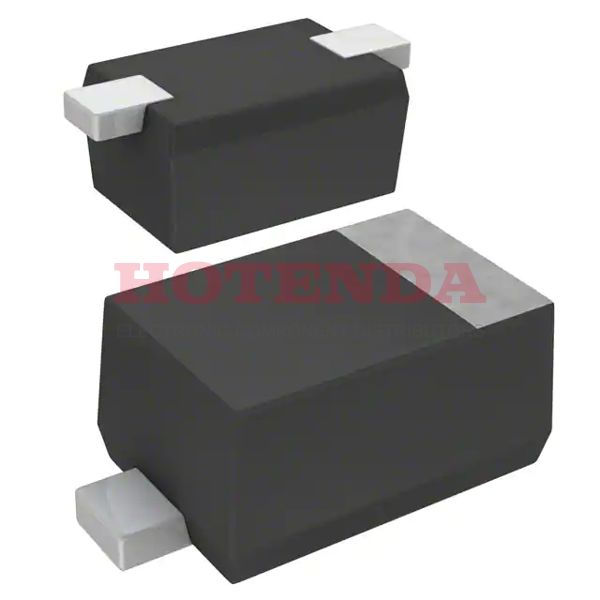

  • DZ2S082M0L - ZENER DIODE 20Ohm ±2.5% 8.2V 100nA @ 5V -40°C~85°C 150mW 2 Terminations SC-79, SOD-523
  • DZ2S082M0L - ZENER DIODE 20Ohm ±2.5% 8.2V 100nA @ 5V -40°C~85°C 150mW 2 Terminations SC-79, SOD-523

DZ2S082M0L

DZ2S082M0L

Panasonic Electronic Components

ZENER DIODE 20Ohm ±2.5% 8.2V 100nA @ 5V -40°C~85°C 150mW 2 Terminations SC-79, SOD-523

SOT-23

DZ2S082M0L Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 10 Weeks
Mount Surface Mount
Mounting Type Surface Mount
Package / Case SC-79, SOD-523
Number of Pins 2
Diode Element Material SILICON
Operating Temperature-40°C~85°C
PackagingTape & Reel (TR)
Published 2011
Tolerance ±2.5%
Part StatusDiscontinued
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
HTS Code8541.10.00.50
Max Power Dissipation150mW
Terminal Position DUAL
Terminal FormFLAT
Peak Reflow Temperature (Cel) NOT SPECIFIED
Reach Compliance Code unknown
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number DZ2S08V2
Pin Count2
Number of Elements 1
Working Voltage 8.2V
Polarity UNIDIRECTIONAL
Impedance20Ohm
Element ConfigurationSingle
Diode Type ZENER DIODE
Current - Reverse Leakage @ Vr 100nA @ 5V
Power Dissipation150mW
Voltage - Forward (Vf) (Max) @ If 1V @ 10mA
Max Reverse Leakage Current 100nA
Impedance-Max 20Ohm
Test Current 5mA
Reference Voltage8.2V
Forward Voltage1V
Zener Voltage 8.2V
Peak Reverse Current100nA
Height 600μm
Length 1.2mm
Width 800μm
REACH SVHC No SVHC
RoHS StatusRoHS Compliant
Lead Free Lead Free
In-Stock:1805 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$0.070240$0.07024
500$0.051647$25.8235
1000$0.043039$43.039
2000$0.039486$78.972
5000$0.036902$184.51
10000$0.034328$343.28
15000$0.033199$497.985
50000$0.032644$1632.2

DZ2S082M0L Product Details

DZ2S082M0L Overview


An electrical device like this requires a reverse leakage current of 100nA @ 5V.During reverse leakage, the maximum current reaches 100nA.For operation, diode reaches 1V @ 10mA at the maximum voltage - Forward (Vf).For full functionality, this device should have a reverse voltage peak of 100nA.

DZ2S082M0L Features


reverse leakage current of 100nA @ 5V
100nA @ 5V is the maximum voltage (Tol)
Reverse leakage current reaches 100nA


DZ2S082M0L Applications


There are a lot of Panasonic Electronic Components
DZ2S082M0L applications of zener single diodes.
