DZ2J062M0L

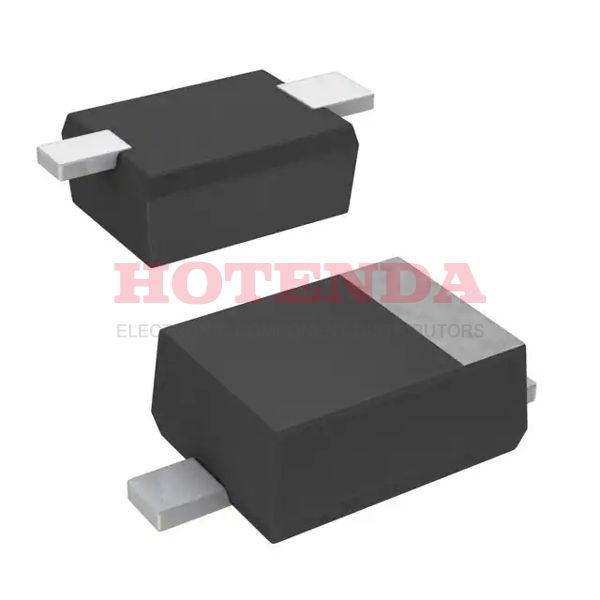

  • DZ2J062M0L - ZENER DIODE 30Ohm ±2.5% 6.2V 200nA @ 4V 200mW 2 Terminations SC-90, SOD-323F
  • DZ2J062M0L - ZENER DIODE 30Ohm ±2.5% 6.2V 200nA @ 4V 200mW 2 Terminations SC-90, SOD-323F

DZ2J062M0L

DZ2J062M0L

Panasonic Electronic Components

ZENER DIODE 30Ohm ±2.5% 6.2V 200nA @ 4V 200mW 2 Terminations SC-90, SOD-323F

SOT-23

DZ2J062M0L Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 10 Weeks
Mount Surface Mount
Mounting Type Surface Mount
Package / Case SC-90, SOD-323F
Number of Pins 2
Diode Element Material SILICON
PackagingCut Tape (CT)
Published 1997
Tolerance ±2.5%
JESD-609 Code e6
Part StatusDiscontinued
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Terminal Finish Tin/Bismuth (Sn/Bi)
Max Operating Temperature150°C
Min Operating Temperature -40°C
Additional FeatureHIGH RELIABILITY
HTS Code8541.10.00.50
Max Power Dissipation200mW
Terminal Position DUAL
Terminal FormFLAT
Peak Reflow Temperature (Cel) NOT SPECIFIED
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number DZ2J06V2
Qualification StatusNot Qualified
Number of Elements 1
Working Voltage 6.2V
Polarity UNIDIRECTIONAL
Impedance30Ohm
Element ConfigurationSingle
Diode Type ZENER DIODE
Current - Reverse Leakage @ Vr 200nA @ 4V
Power Dissipation200mW
Voltage - Forward (Vf) (Max) @ If 1V @ 10mA
Max Reverse Leakage Current 200nA
Impedance-Max 30Ohm
Test Current 5mA
Reference Voltage6.2V
Forward Voltage1V
Zener Voltage 6.2V
Peak Reverse Current200nA
Voltage Tolerance2.5%
Height 700μm
Length 1.7mm
Width 1.25mm
REACH SVHC Unknown
RoHS StatusRoHS Compliant
Lead Free Lead Free
In-Stock:4981 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$0.033815$0.033815
500$0.024864$12.432
1000$0.020720$20.72
2000$0.019009$38.018
5000$0.017766$88.83
10000$0.016526$165.26
15000$0.015983$239.745
50000$0.015716$785.8

DZ2J062M0L Product Details

DZ2J062M0L Overview


A reverse leakage current of 200nA @ 4V is required to supply this electrical device.200nA is the maximum reverse leakage current.1V @ 10mA is reached when the maximum voltage - Forward (Vf) is supplied for its operation.This device functions best with a peak reverse voltage of 200nA.

DZ2J062M0L Features


reverse leakage current of 200nA @ 4V
200nA @ 4V is the maximum voltage (Tol)
Reverse leakage current reaches 200nA


DZ2J062M0L Applications


There are a lot of Panasonic Electronic Components
DZ2J062M0L applications of zener single diodes.
