Name: DB2X41500L
Brand: Panasonic Electronic Components
SKU: DB2X41500L
Availability: InStock

new-10%

DB2X41500L

Manufacturer part number:DB2X41500L

Manufacturer:Panasonic Electronic Components

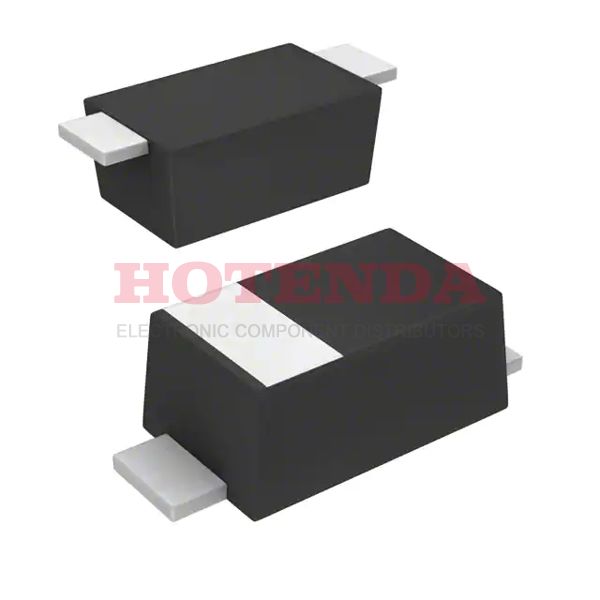

Description:DB2X41500L datasheet pdf and Diodes - Rectifiers - Single product details from Panasonic Electronic Components stock available on our website

Case Package:SOT-23

Datasheet:DB2X41500L Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Contact Plating	Tin
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	SOD-123F
Number of Pins	2
Diode Element Material	SILICON
Packaging	Tape & Reel (TR)
Published	2000
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
ECCN Code	EAR99
Max Operating Temperature	125°C
Min Operating Temperature	-55°C
HTS Code	8541.10.00.80
Terminal Position	DUAL
Terminal Form	FLAT
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Reach Compliance Code	unknown
[email protected] Reflow Temperature-Max (s)	NOT SPECIFIED
Base Part Number	DB2X415
Number of Elements	1
Element Configuration	Single
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Diode Type	Schottky
Current - Reverse Leakage @ Vr	200μA @ 40V
Voltage - Forward (Vf) (Max) @ If	550mV @ 3A
Forward Current	3A
Operating Temperature - Junction	125°C Max
Output Current-Max	3A
Application	GENERAL PURPOSE
Forward Voltage	550mV
Max Reverse Voltage (DC)	40V
Average Rectified Current	3A
Number of Phases	1
Reverse Recovery Time	25 ns
Peak Reverse Current	200μA
Max Repetitive Reverse Voltage (Vrrm)	40V
Capacitance @ Vr, F	70pF @ 10V 1MHz
Peak Non-Repetitive Surge Current	50A
Max Forward Surge Current (Ifsm)	50A
Height	800μm
Length	2.6mm
Width	1.6mm
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Lead Free	Lead Free

DB2X41500L Product Details

DB2X41500L Overview

Devices like this have an average rectified current of 3A volts.Phase diode rectifier is permissible for forward current to reach 3A.The maximum output current is 3A.The datasheets show a peak reverse of 200μA, as shown in the data chart.
