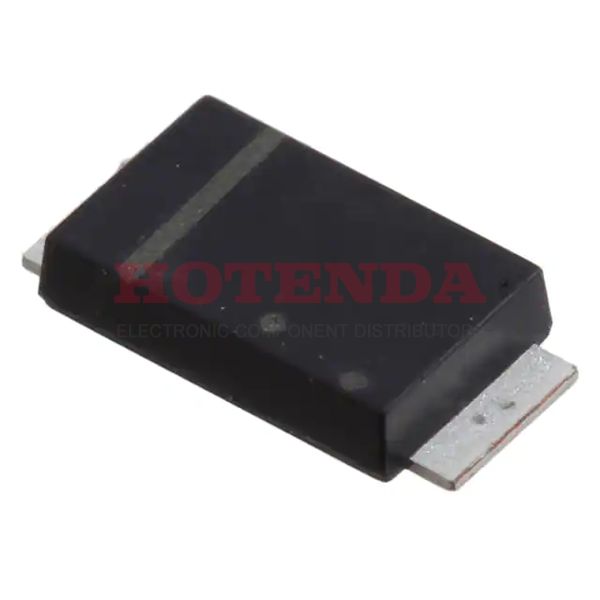

Name: DB2460100L
Brand: Panasonic Electronic Components
SKU: DB2460100L
Availability: InStock

new-10%

DB2460100L

Manufacturer part number:DB2460100L

Manufacturer:Panasonic Electronic Components

Description:DB2460100L datasheet pdf and Diodes - Rectifiers - Single product details from Panasonic Electronic Components stock available on our website

Case Package:SOT-23

Datasheet:DB2460100L Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	SOD-128
Number of Pins	2
Diode Element Material	SILICON
Packaging	Tape & Reel (TR)
Published	2014
Part Status	Discontinued
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
ECCN Code	EAR99
Max Operating Temperature	150°C
Min Operating Temperature	-55°C
HTS Code	8541.10.00.80
Subcategory	Rectifier Diodes
Terminal Position	DUAL
Terminal Form	FLAT
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Reach Compliance Code	unknown
[email protected] Reflow Temperature-Max (s)	NOT SPECIFIED
Base Part Number	DB24601
Pin Count	2
Number of Elements	1
Element Configuration	Single
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Diode Type	Schottky
Current - Reverse Leakage @ Vr	150μA @ 60V
Voltage - Forward (Vf) (Max) @ If	650mV @ 3A
Forward Current	3A
Operating Temperature - Junction	150°C Max
Output Current-Max	3A
Application	GENERAL PURPOSE
Current - Average Rectified (Io)	3A DC
Forward Voltage	650mV
Max Reverse Voltage (DC)	60V
Average Rectified Current	3A
Number of Phases	1
Reverse Recovery Time	21 ns
Peak Reverse Current	150μA
Max Repetitive Reverse Voltage (Vrrm)	60V
Capacitance @ Vr, F	65pF @ 10V 1MHz
Peak Non-Repetitive Surge Current	50A
Max Forward Surge Current (Ifsm)	50A
Height	850μm
Length	3.8mm
Width	2.4mm
RoHS Status	RoHS Compliant

DB2460100L Product Details

DB2460100L Overview

Devices with this rating have an average rectified current of 3A volts.A value of 3A is the maximum forward current that can be allowed.As far as output current is concerned, 3A is the maximum.On the data sheets, the peak reverse is indicated by the data chart as 150μA.
