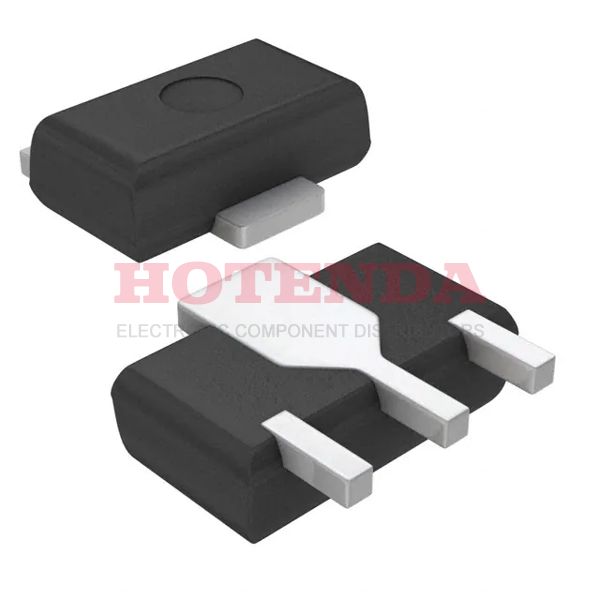

AN78L09M Overview
The package is delivered in a Bulk case. In order to package the IC voltage regulator, a TO-243AA case is used. On the Voltage regulator IC, there are 3 terminations that can be connected. This IC Regulator has a type of output called Fixed. There are 1 regulators implemented in this electroic component. Surface Mount can be adjusted in the Linear IC in order to vary the temperature range over which Linear Regulator operates. The IC voltage regulator must be maintained at 0°C~125°C degrees for it to function. As you can see, this regulator's output function is configured to be Positive. At present, it can produce an output of up to 100mA. The regulator has a total of 1 outputs to make sure that it delivers prompt, sufficient outputs. For your information, part number AN78L09 is the basic part number for this voltage regulator IC.
AN78L09M Features
AN78L09M Applications
There are a lot of Panasonic Electronic Components
AN78L09M Linear Voltage Regulators applications.
- CPU power supply
- Switching regulator
- Multiple-power supply system
- Digital audio player
- Digital TV
- Smartcard
- Industrial equipment
- DVD and CD-ROM drive
- Quick charge protocols
- Measurement and control euipment
