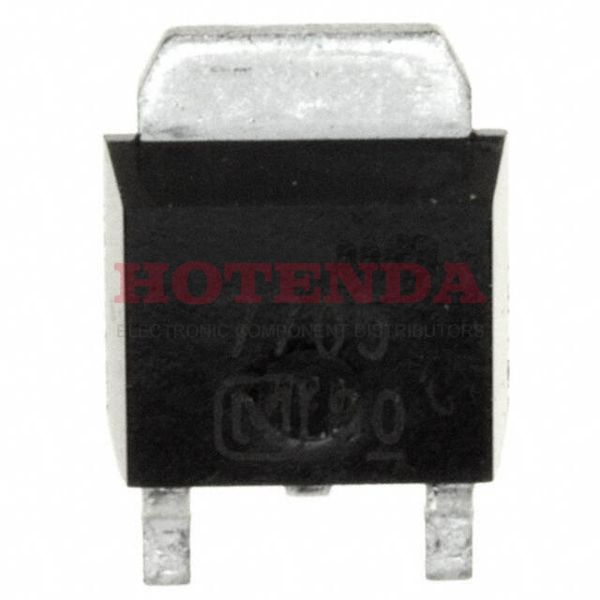

AN7705SP Overview
A Bulk case is used to deliver the Voltage Regulated IC. A TO-252-3, DPak (2 Leads + Tab), SC-63 case is used for packaging. As you can see, the IC chip has 2 terminations. Regulator IC chip's output type is Fixed. The electronic part implements 1 regulators in total. In this Regulator IC chip, the operating temperature of Surface Mount varies. 25°C~125°C degrees is the operating temperature of the Voltage Regulator IC. There is one output function configured for this voltage regulator IC, and that is Positive. It has 1 outputs to ensure that the performance of this regulator is prompt and sufficient. For your information, this regulator's basic part number is AN7705.
AN7705SP Features
AN7705SP Applications
There are a lot of Panasonic Electronic Components
AN7705SP Linear Voltage Regulators applications.
- Communication device
- Personal communication device
- Portable telephone
- Electronic notebook
- Camera
- Video equipment
- CPU power supply
- Switching regulator
- Multiple-power supply system
- Digital audio player
