Name: HC3-HP-AC24V-F
Brand: Panasonic Electric Works
SKU: HC3-HP-AC24V-F
Price: 7.53000 USD
Availability: InStock

new

HC3-HP-AC24V-F

Manufacturer part number:HC3-HP-AC24V-F

Manufacturer:Panasonic Electric Works

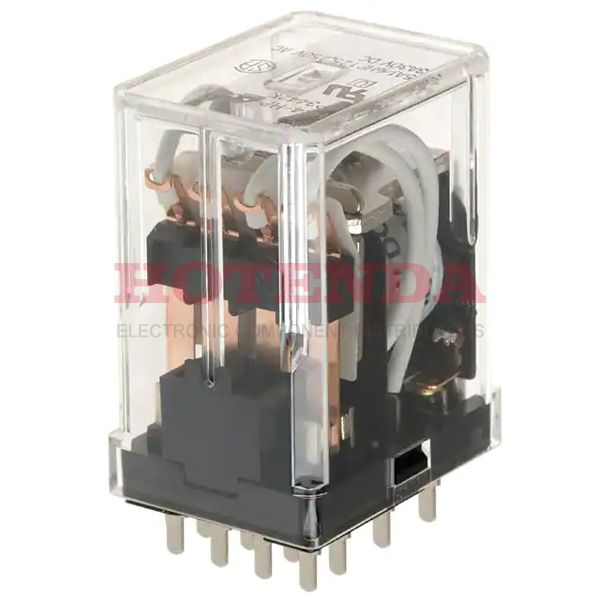

Description:RELAY GEN PURPOSE 3PDT 7A 24V

Case Package:SOT-23

Datasheet:HC3-HP-AC24V-F Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Silver Alloy, Cadmium Free
Mount	Through Hole
Mounting Type	Through Hole
Number of Pins	11
Operating Temperature	-50°C~70°C
Packaging	Bulk
Published	2003
Series	HC
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	PC Pin
ECCN Code	EAR99
Additional Feature	COIL OPERATE VOLTAGE(AC): 19.2 V, COIL RELEASE VOLTAGE(AC): 7.2 V
Packing Method	BOX
Reference Standard	CSA; UL; VDE
Termination Style	PC Pin
Body Length or Diameter	27.2mm
Body Breadth	20.8 mm
Physical Dimension	27.2mm x 20.8mm x 35.2mm
Max Voltage Rating (AC)	250V
Max Current Rating	7A
Electrical Life	100000 Cycle(s)
Throw Configuration	3PDT
Contact Form	3PDT (3 Form C)
Relay Type	General Purpose
Contact Current(AC)-Max	7A
Contact (AC) Max Rating R Load	[email protected]
Operate Time	20ms
Coil Voltage	24VAC
Coil Type	Non Latching
Switching Voltage	250VAC -Max
Coil Current	50mA
Release Time	20 ms
Must Operate Voltage	19.2VAC
Power Consumption	1.3W
Coil Power	1.2W
Must Release Voltage	7.2VAC
Contact/Output Supply Type	AC
Relay Action	MOMENTARY
Coil/Input Supply Type	AC
Coil Voltage (AC)	24V
Body Height	35.2mm
RoHS Status	RoHS Compliant
