Name: AYF533435
Brand: Panasonic Electric Works
SKU: AYF533435
Price: 2.54000 USD
Availability: InStock

new-10%

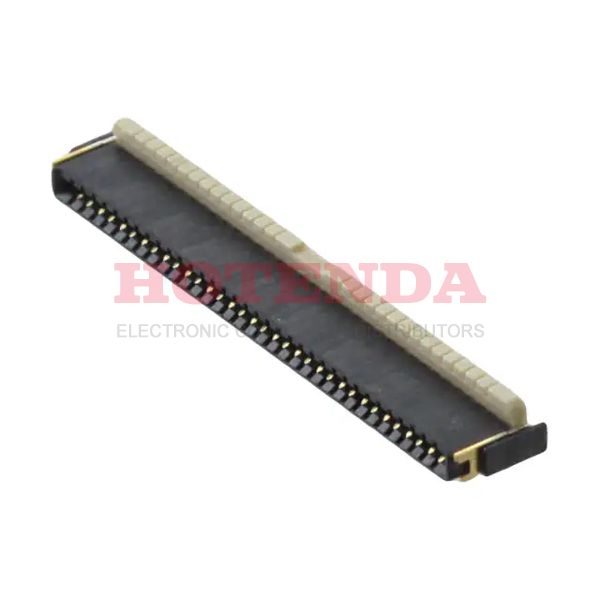

AYF533435

Manufacturer part number:AYF533435

Manufacturer:Panasonic Electric Works

Description:AYF533435 datasheet pdf and FFC, FPC (Flat Flexible) Connectors product details from Panasonic Electric Works stock available on our website

Case Package:SOT-23

Datasheet:AYF533435 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Contact Material	Copper Alloy
Mount	Surface Mount
Mounting Type	Surface Mount, Right Angle
Housing Material	Liquid Crystal Polymer (LCP)
Actuator Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-55°C~85°C
Packaging	Tape & Reel (TR)
Published	2008
Series	Y5B
JESD-609 Code	e4
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	FFC/FPC CONNECTOR
Number of Positions	34
Number of Rows	1
Gender	Receptacle
Voltage - Rated	50V
Additional Feature	LOW PROFILE
HTS Code	8536.69.40.51
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	0.5A per Contact
Pitch	0.020 0.50mm
Total Number of Contacts	34
Current Rating	500mA
Contact Finish	Gold
UL Flammability Code	94V-0
Mating Cycles	20
Flat Flex Type	FFC, FPC
Connector/Contact Type	Contacts, Top and Bottom
Cable End Type	Tapered
Locking Feature	Flip Lock, Backlock
Contact Location	Dual
Contact Finish Thickness	Flash
Height Above Board	0.039 1.00mm
FFC, FCB Thickness	0.30mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

AYF533435 Product Details

AYF533435 Overview

The product is packaged in FFC/FPC CONNECTOR.A Surface Mount, Right Angle mounting type is specified for the device.A Tape & Reel (TR) case is used to package the product.It's from the Y5B Series.There are also features like LOW PROFILE, just to name a few.There is a mounting hole at Surface Mount.It runs at -55°C~85°C Operating Temperature.
