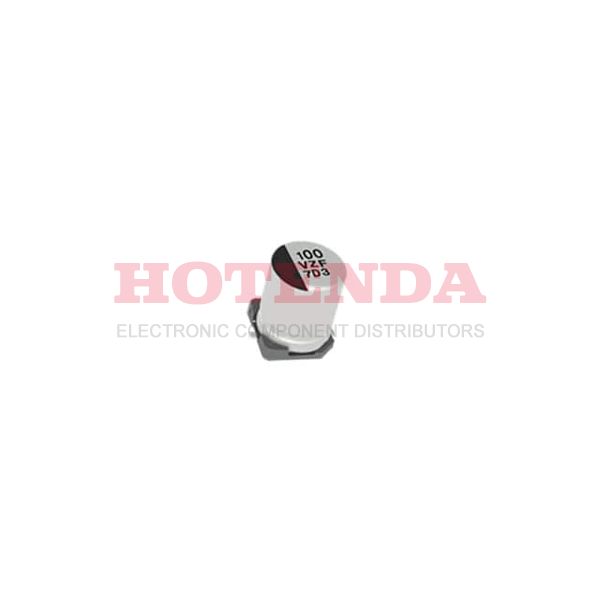

EEH-ZF1H101P Overview
In order to power systems, 900 mA @ 100 kHz ripple current @ High Frequency is needed.This electrical device has an ESR (Equivalent Series Resistance) of 28mOhm.For 135 mA @ 100 Hz to be able to fully perform its function, a ripple current @ Low Frequency needs to be provided.In this case, the load can only be supplied with 100uF capacitance value.For stable operation, the operating temperature should be -55°C ~ 150°C.
EEH-ZF1H101P Features
900 mA @ 100 kHz ripple current on a high frequency
a 28mOhm in ESR (Equivalent Series Resistance) in this electrical device
with 100uF capacitance value in this case
an operating temperature of -55°C ~ 150°C
EEH-ZF1H101P Applications
There are a lot of Panasonic
EEH-ZF1H101P applications of aluminum polymer capacitors.
- LED driver power supplies
- Phone chargers
- Motherboards
- Servers and adapters (laptop power supplies)
- Medical equipment
- Switching Power Supply and DC/DC Converter.
- Buck up Power Supplies of CPU(VRM etc.)
- Miniature high Power Supply.
