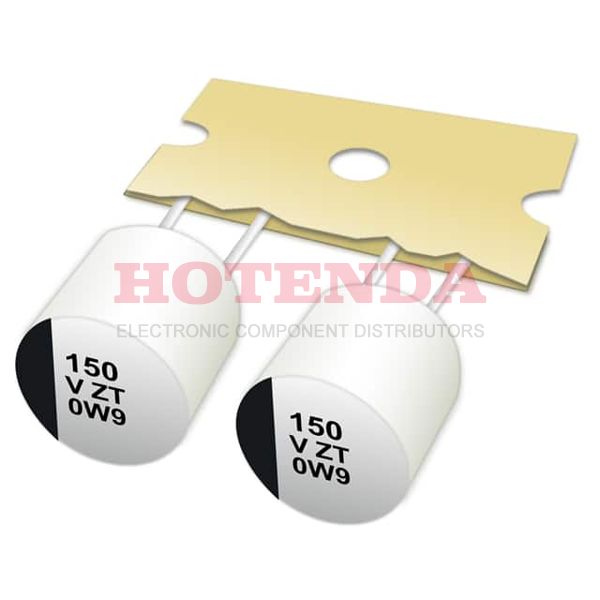

Name: EEH-AZT1J560B
Brand: Panasonic
SKU: EEH-AZT1J560B
Availability: InStock

new-10%

EEH-AZT1J560B

Manufacturer part number:EEH-AZT1J560B

Manufacturer:Panasonic

Description:56µF 20% Radial, Can Tape and Box 25mOhm ZT-A Through Hole Polymer Hybrid Automotive

Case Package:SOT-23

Datasheet:EEH-AZT1J560B Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Through Hole
Package / Case	Radial, Can
Number of Terminals	2
Surface Mount Land Size	-
Product Weight (g)	1.251
ECCN (US)	EAR99
Capacitance Value	56uF
ESR (Ohm)	0.025
Equivalent Series Resistance Type	Low
IR (mA)	2800
IL (uA)	35.28@2Min
Lifetime (h)	4000
Mounting	Through Hole
Terminal Pitch (mm)	5
Wire Form	Long Lead
Size (mm)	10 X 9.5
Minimum Operating Temperature (°C)	-55
Maximum Operating Temperature (°C)	125
Lead Diameter (mm)	0.6
Product Diameter (mm)	10
Qualification	AEC-Q200
Capacitance Tolerance	± 20%
Dimensions	10 x 9.5 x 0.6mm
Maximum Operating Temperature	+125°C
Minimum Operating Temperature	- 55 C
Package Type	Can
Lifetime @ Temp.	4000 Hrs @ 125°C
Height - Seated (Max)	0.413 (10.50mm)
Product Status	Active
Mfr	Panasonic Electronic Components
Base Product Number	EEH-AZT
Package	Cut Tape (CT);Tape & Box (TB);
Packaging	Tape and Box
Series	ZT-A
Operating Temperature	-55°C ~ 125°C
Size / Dimension	0.394 Dia (10.00mm)
Tolerance	20%
Type	Polymer Hybrid
Applications	Automotive
Voltage - Rated	63 V
Capacitance	56µF
Subcategory	Capacitors
Technology	Hybrid
Construction	Aluminum Cylindrical Can
Termination Style	Radial
Lead Pitch	5mm
ESR (Equivalent Series Resistance)	25mOhm
Polarity	Polar
Lead Spacing	0.197 (5.00mm)
Voltage	63VDC
Ripple Current	2.8 A
Ripple Current @ Low Frequency	420 mA @ 100 Hz
Ripple Current @ High Frequency	2.8 A @ 100 kHz
Product Type	Electrolytic Capacitors
ESR	0.025ohm
Product	Aluminum Hybrid Polymer Capacitors
Product Length	-
Product Width	-
Length	9.5mm
Diameter	10mm
Height	-
Width	-
Product Height	9.5mm
Product Height (mm)	9.5
RoHS Status	RoHS Compliant
Ratings	AEC-Q200

EEH-AZT1J560B Product Details

EEH-AZT1J560B Overview

2.8 A @ 100 kHz ripple current @ high frequency is required in order to power systems.There is a 25mOhm in ESR (Equivalent Series Resistance) in this electrical device.In order for 420 mA @ 100 Hz to fully perform its function, a ripple current at a low frequency must be provided.The load here can only be provided with 56uF capacitance.Stable operation requires -55°C ~ 125°C as the operating temperature.

EEH-AZT1J560B Features

2.8 A @ 100 kHz ripple current on a high frequency
a 25mOhm in ESR (Equivalent Series Resistance) in this electrical device
with 56uF capacitance value in this case
an operating temperature of -55°C ~ 125°C
