Name: EEH-AZS1J151B
Brand: Panasonic
SKU: EEH-AZS1J151B
Availability: InStock

new-10%

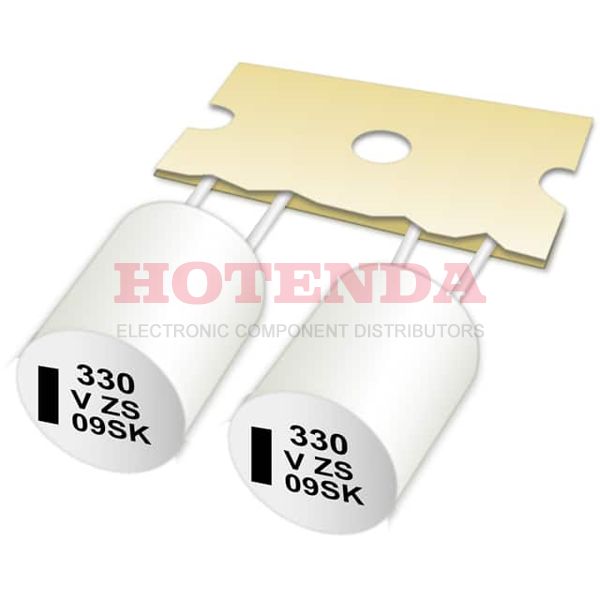

EEH-AZS1J151B

Manufacturer part number:EEH-AZS1J151B

Manufacturer:Panasonic

Description:150 µF 20% Radial, Can Tape and Box 14mOhm ZS Through Hole Polymer Hybrid Automotive

Case Package:SOT-23

Datasheet:EEH-AZS1J151B Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Through Hole
Package / Case	Radial, Can
Number of Terminals	2
Surface Mount Land Size	-
Product Weight (g)	2.011
ECCN (US)	EAR99
Capacitance Value	150uF
ESR (Ohm)	0.015
Equivalent Series Resistance Type	Low
IR (mA)	3500
IL (uA)	94.5@2Min
Lifetime (h)	4000
Mounting	Through Hole
Terminal Pitch (mm)	5
Wire Form	Long Lead
Size (mm)	10 X 15.7
Minimum Operating Temperature (°C)	-55
Maximum Operating Temperature (°C)	125
Lead Diameter (mm)	0.8
Product Diameter (mm)	10
Package	Cut Tape (CT);Tape & Box (TB);
Base Product Number	EEH-AZS
Mfr	Panasonic Electronic Components
Product Status	Active
Height - Seated (Max)	0.657 (16.70mm)
Lifetime @ Temp.	4000 Hrs @ 125°C
Dimensions	10 x 15.7 x 0.8mm
Maximum Operating Temperature	+125°C
Qualification	AEC-Q200
Capacitance Tolerance	± 20%
Package Type	Can
Minimum Operating Temperature	- 55 C
Manufacturer	Panasonic
Brand	Panasonic
RoHS	Details
Packaging	Tape and Box
Operating Temperature	-55°C ~ 125°C
Series	ZS
Size / Dimension	0.394 Dia (10.00mm)
Tolerance	20%
Type	Polymer Hybrid
Applications	Automotive
Voltage - Rated	63 V
Capacitance	150 µF
Subcategory	Capacitors
Technology	Hybrid
Construction	Aluminum Cylindrical Can
Termination Style	Radial
Lead Pitch	5mm
ESR (Equivalent Series Resistance)	14mOhm
Polarity	Polar
Lead Spacing	0.197 (5.00mm)
Voltage	63VDC
Ripple Current	3.5 A
Ripple Current @ Low Frequency	525 mA @ 100 Hz
Ripple Current @ High Frequency	3.5 A @ 100 kHz
Product Type	Electrolytic Capacitors
ESR	0.015ohm
Product	Aluminum Hybrid Polymer Capacitors
Product Category	Aluminum Organic Polymer Capacitors
Product Length	-
Product Width	-
Length	15.7mm
Diameter	10mm
Width	-
Height	-
Product Height	15.7mm
Product Height (mm)	15.7
RoHS Status	RoHS Compliant
Ratings	AEC-Q200

EEH-AZS1J151B Product Details

EEH-AZS1J151B Overview

3.5 A @ 100 kHz ripple current @ high frequency is necessary to power systems.ESR (Equivalent Series Resistance) of 14mOhm is observed in this electrical device.This device requires a ripple current at low frequency to fully function.A 150uF capacitance value can only be supplied to the load in this situation.In order to ensure stable operation, the operating temperature should be -55°C ~ 125°C.

EEH-AZS1J151B Features

3.5 A @ 100 kHz ripple current on a high frequency
a 14mOhm in ESR (Equivalent Series Resistance) in this electrical device
with 150uF capacitance value in this case
an operating temperature of -55°C ~ 125°C
