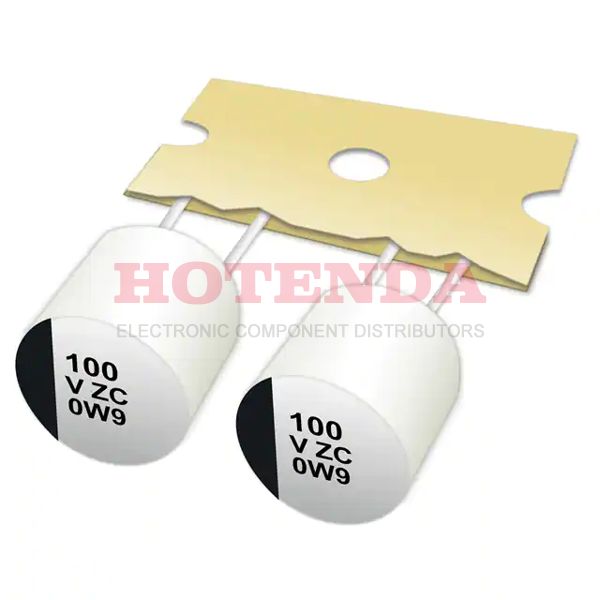

Name: EEH-AZC1V221B
Brand: Panasonic
SKU: EEH-AZC1V221B
Availability: InStock

new-10%

EEH-AZC1V221B

Manufacturer part number:EEH-AZC1V221B

Manufacturer:Panasonic

Description:220µF 20% Radial, Can Tape and Box 20mOhm ZC-A Through Hole Polymer Hybrid Automotive

Case Package:SOT-23

Datasheet:EEH-AZC1V221B Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Through Hole
Package / Case	Radial, Can
Number of Terminals	2
Surface Mount Land Size	-
Product Weight (g)	1.251
ECCN (US)	EAR99
Capacitance Value	220uF
ESR (Ohm)	0.02
Equivalent Series Resistance Type	Standard
IR (mA)	2000
IL (uA)	77@2Min
Lifetime (h)	4000
Mounting	Through Hole
Terminal Pitch (mm)	5
Wire Form	Long Lead
Size (mm)	10 X 9.5
Minimum Operating Temperature (°C)	-55
Maximum Operating Temperature (°C)	125
Lead Diameter (mm)	0.6
Product Diameter (mm)	10
Dimensions	10 x 9.5 x 0.6mm
Maximum Operating Temperature	+125°C
Qualification	AEC-Q200
Capacitance Tolerance	± 20%
Package Type	Can
Minimum Operating Temperature	- 55 C
Manufacturer	Panasonic
Brand	Panasonic
RoHS	Details
Package	Cut Tape (CT);Tape & Box (TB);
Base Product Number	EEH-AZC
Mfr	Panasonic Electronic Components
Product Status	Active
Height - Seated (Max)	0.413 (10.50mm)
Lifetime @ Temp.	4000 Hrs @ 125°C
Packaging	Tape and Box
Series	ZC-A
Operating Temperature	-55°C ~ 125°C
Size / Dimension	0.394 Dia (10.00mm)
Tolerance	20%
Type	Polymer Hybrid
Applications	Automotive
Voltage - Rated	35 V
Capacitance	220µF
Subcategory	Capacitors
Technology	Hybrid
Construction	Aluminum Cylindrical Can
Termination Style	Radial
Lead Pitch	5mm
ESR (Equivalent Series Resistance)	20mOhm
Polarity	Polar
Lead Spacing	5 mm
Voltage	35VDC
Ripple Current	2.8 A
Ripple Current @ Low Frequency	300 mA @ 100 Hz
Ripple Current @ High Frequency	2 A @ 100 kHz
Product Type	Electrolytic Capacitors
ESR	0.02ohm
Product	Aluminum Hybrid Polymer Capacitors
Product Category	Aluminum Organic Polymer Capacitors
Product Length	-
Product Width	-
Length	9.5mm
Diameter	10mm
Width	-
Height	-
Product Height	9.5mm
Product Height (mm)	9.5
RoHS Status	RoHS Compliant
Ratings	AEC-Q200

EEH-AZC1V221B Product Details

EEH-AZC1V221B Overview

2 A @ 100 kHz ripple current @ high frequency is necessary to power systems.ESR (Equivalent Series Resistance) of 20mOhm is observed in this electrical device.This device requires a ripple current at low frequency to fully function.A 220uF capacitance value can only be supplied to the load in this situation.In order to ensure stable operation, the operating temperature should be -55°C ~ 125°C.

EEH-AZC1V221B Features

2 A @ 100 kHz ripple current on a high frequency
a 20mOhm in ESR (Equivalent Series Resistance) in this electrical device
with 220uF capacitance value in this case
an operating temperature of -55°C ~ 125°C
