Name: EEH-AZC1E221B
Brand: Panasonic
SKU: EEH-AZC1E221B
Availability: InStock

new-10%

EEH-AZC1E221B

Manufacturer part number:EEH-AZC1E221B

Manufacturer:Panasonic

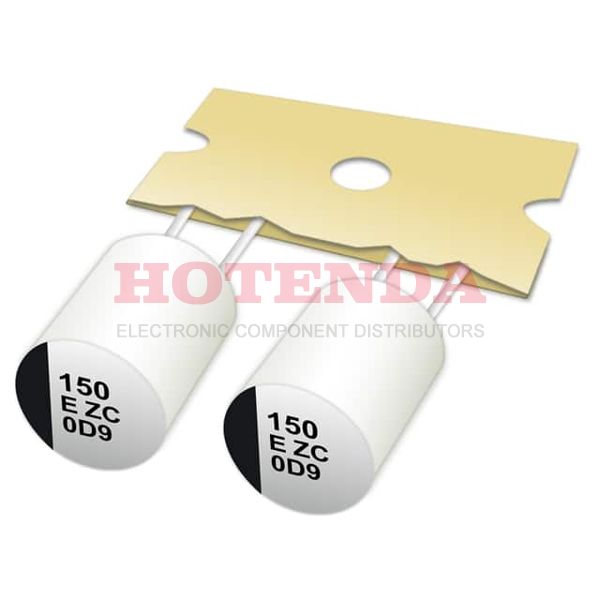

Description:220µF 20% Radial, Can Tape and Box 27mOhm ZC-A Through Hole Polymer Hybrid Automotive

Case Package:SOT-23

Datasheet:EEH-AZC1E221B Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Through Hole
Package / Case	Radial, Can
Number of Terminals	2
Surface Mount Land Size	-
Product Weight (g)	0.976
ECCN (US)	EAR99
Capacitance Value	220uF
ESR (Ohm)	0.027
Equivalent Series Resistance Type	Standard
IR (mA)	1600
IL (uA)	55@2Min
Lifetime (h)	4000
Mounting	Through Hole
Terminal Pitch (mm)	3.5
Wire Form	Long Lead
Size (mm)	8 X 9.5
Minimum Operating Temperature (°C)	-55
Maximum Operating Temperature (°C)	125
Lead Diameter (mm)	0.6
Product Diameter (mm)	8
Qualification	AEC-Q200
Capacitance Tolerance	± 20%
Dimensions	8 x 9.5 x 0.6mm
Maximum Operating Temperature	+125°C
Package Type	Can
Minimum Operating Temperature	- 55 C
Manufacturer	Panasonic
Brand	Panasonic
RoHS	Details
Package	Cut Tape (CT);Tape & Box (TB);
Base Product Number	EEH-AZC
Mfr	Panasonic Electronic Components
Product Status	Active
Height - Seated (Max)	0.413 (10.50mm)
Lifetime @ Temp.	4000 Hrs @ 125°C
Packaging	Tape and Box
Series	ZC-A
Operating Temperature	-55°C ~ 125°C
Size / Dimension	0.315 Dia (8.00mm)
Tolerance	20%
Type	Polymer Hybrid
Applications	Automotive
Voltage - Rated	25 V
Capacitance	220µF
Subcategory	Capacitors
Technology	Hybrid
Construction	Aluminum Cylindrical Can
Termination Style	Radial
Lead Pitch	3.5mm
ESR (Equivalent Series Resistance)	27mOhm
Polarity	Polar
Lead Spacing	3.5 mm
Voltage	25VDC
Ripple Current	1.9 A
Ripple Current @ Low Frequency	240 mA @ 100 Hz
Ripple Current @ High Frequency	1.6 A @ 100 kHz
Product Type	Electrolytic Capacitors
ESR	0.027ohm
Product	Aluminum Hybrid Polymer Capacitors
Product Category	Aluminum Organic Polymer Capacitors
Product Length	-
Product Width	-
Length	9.5mm
Diameter	8mm
Width	-
Height	-
Product Height	9.5mm
Product Height (mm)	9.5
RoHS Status	RoHS Compliant
Ratings	AEC-Q200

EEH-AZC1E221B Product Details

EEH-AZC1E221B Overview

System power is determined by 1.6 A @ 100 kHz ripple current on a high frequency.Electrical device with 27mOhm ESR (Equivalent Series Resistance).To fully perform the function of 240 mA @ 100 Hz, a ripple current at low frequency must be provided.As a result, the load can only be supplied with 220uF capacitance.It is recommended to operate at -55°C ~ 125°C for stable operation.

EEH-AZC1E221B Features

1.6 A @ 100 kHz ripple current on a high frequency
a 27mOhm in ESR (Equivalent Series Resistance) in this electrical device
with 220uF capacitance value in this case
an operating temperature of -55°C ~ 125°C
