Name: NVMFS5832NLWFT1G
Brand: ON Semiconductor
SKU: NVMFS5832NLWFT1G
Availability: InStock

new-10%

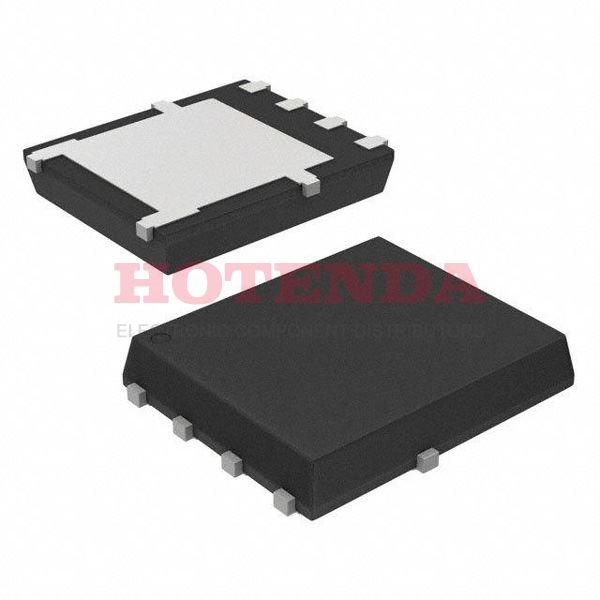

NVMFS5832NLWFT1G

Manufacturer part number:NVMFS5832NLWFT1G

Manufacturer:ON Semiconductor

Description:Trans MOSFET N-CH 40V 120A 5-Pin DFN T/R

Case Package:SOT-23

Datasheet:NVMFS5832NLWFT1G Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	38 Weeks
Lifecycle Status	ACTIVE, NOT REC (Last Updated: 4 days ago)
Mounting Type	Surface Mount
Package / Case	8-PowerTDFN
Surface Mount	YES
Number of Pins	5
Operating Temperature	-55°C~175°C TJ
Packaging	Tape & Reel (TR)
Published	2013
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Terminal Finish	Tin (Sn)
Subcategory	FET General Purpose Power
Technology	MOSFET (Metal Oxide)
Pin Count	5
Number of Channels	1
Power Dissipation-Max	3.7W Ta 127W Tc
Element Configuration	Single
Turn On Delay Time	13 ns
FET Type	N-Channel
Rds On (Max) @ Id, Vgs	4.2m Ω @ 20A, 10V
Vgs(th) (Max) @ Id	2.4V @ 250μA
Halogen Free	Halogen Free
Input Capacitance (Ciss) (Max) @ Vds	2700pF @ 25V
Current - Continuous Drain (Id) @ 25°C	21A Ta
Gate Charge (Qg) (Max) @ Vgs	51nC @ 10V
Rise Time	24ns
Drain to Source Voltage (Vdss)	40V
Drive Voltage (Max Rds On,Min Rds On)	4.5V 10V
Vgs (Max)	±20V
Fall Time (Typ)	8 ns
Turn-Off Delay Time	27 ns
Continuous Drain Current (ID)	120A
Gate to Source Voltage (Vgs)	20V
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

About NVMFS5832NLWFT1G

The NVMFS5832NLWFT1G from ON Semiconductor is a high-performance microcontroller designed for a wide range of embedded applications. This component features Trans MOSFET N-CH 40V 120A 5-Pin DFN T/R.

Key Features

Advanced AVR architecture for efficient processing
Wide operating temperature range: -40°C to 85°C
Low power consumption for energy-efficient applications
Comprehensive peripheral set including SPI, UART, and USART interfaces

Applications

This microcontroller is ideal for various applications including:

Industrial control systems
Consumer electronics
Automotive systems
IoT devices
Medical equipment

Technical Support

Hotenda provides comprehensive technical support for the NVMFS5832NLWFT1G, including datasheets, application notes, and design resources. Our team of engineers is available to assist with your design challenges.
