NLVVHC1G14DTT1G Overview

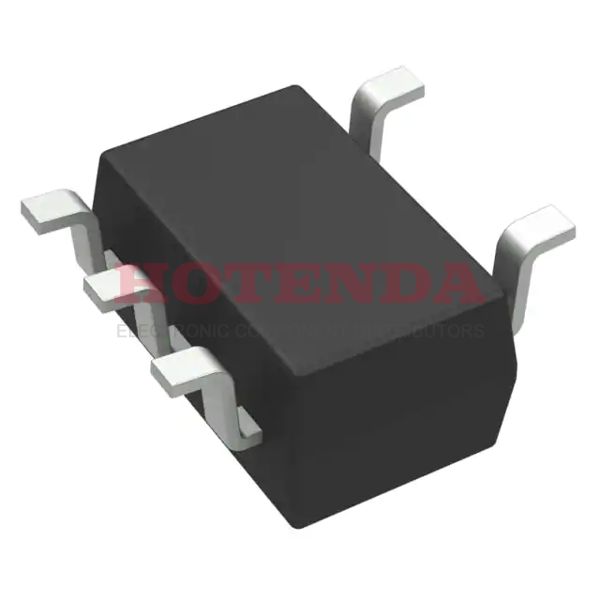

The part comes in SOT-23-5 Thin, TSOT-23-5 packaging, which makes it convenient to ship overseas. To ensure high reliability, a new packaging method Tape & Reel (TR) is used. A Inverter logic principle is used to make it work. It is necessary to ensure the full functionality of the part by providing a voltage of 2V~5.5V. Around -55°C~125°C is the extended operating temperature. There is a hole in Surface Mount for mounting the part. In both high and low states, output current is 8mA 8mA. This item is from the Automotive, AEC-Q100, 74VHC series. Circuits number 1 make up this device. Standing by mode draws 1μA watts of current. The feature count is 0.
NLVVHC1G14DTT1G Features
Inverter Logic Type
Operating Temperature: -55°C~125°C
NLVVHC1G14DTT1G Applications
There are a lot of ON Semiconductor
NLVVHC1G14DTT1G Gates and Inverters applications.
- Computer
- Television
- Washing machine
- Range hood
- Refrigerator
- VCR
- Massager
- Fan
- Illumination
- Cell phone
