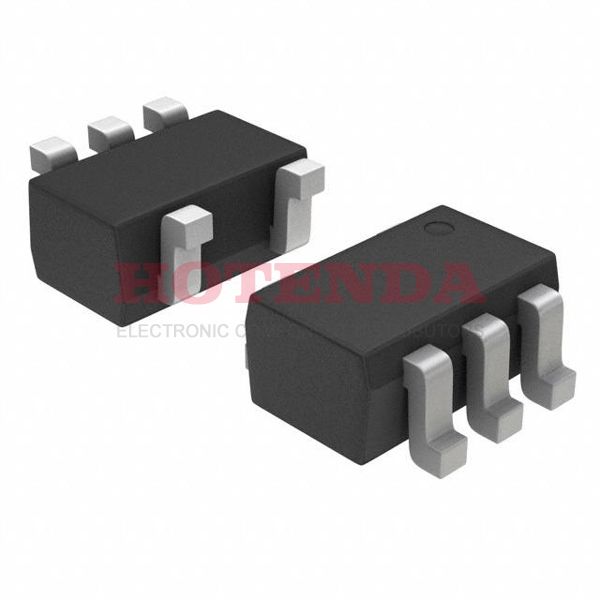

NLV17SGU04DFT2G Overview
Due to its 5-TSSOP, SC-70-5, SOT-353 packaging, the part is convenient for international shipping. High reliability is achieved by using advanced packaging method Tape & Reel (TR). Inverter logic is the basis of its operation. This part needs a voltage of 0.9V~3.6V to function properly. An extended operating temperature of -55°C~125°C degrees Celsius. Part Surface Mount is mounted. High and low output current states are both 8mA 8mA. The series Automotive, AEC-Q100 contains it. A total of 5 terminations have been recorded. It has 1 functions that enhance user experience significantly. There are many applications for this logic device, mounted at Surface Mount. It supports inputs of 1. As the part is in a quiescent state, it has 500nA current flowing through it. A 1 circuit is present in this device. A 30pF load capacitance is present in the part. To supply the device, a voltage of 0.9V must be applied. It reaches 3.6V when the supply voltage is maximal (Vsup). A method of industry TAPE AND REEL is included in the package.
NLV17SGU04DFT2G Features
Inverter Logic Type
Operating Temperature: -55°C~125°C
Quiescent Current: 500nA
NLV17SGU04DFT2G Applications
There are a lot of ON Semiconductor
NLV17SGU04DFT2G Gates and Inverters applications.
- Sewing machine
- DVD
- VCD
- Computer
- Television
- Washing machine
- Range hood
- Refrigerator
- VCR
- Massager
