NLU1G04CMUTCG Overview

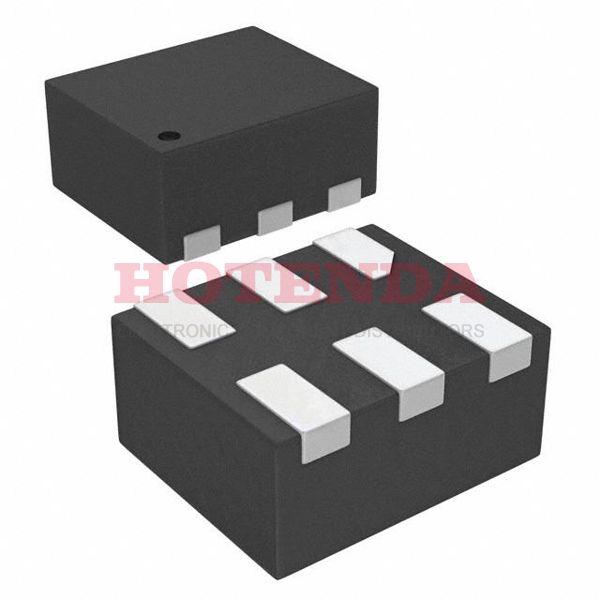

Packed in 6-UFDFN, the part is convenient for shipping overseas. Advanced packaging method Tape & Reel (TR) is used to provide high reliability. It works based on the Inverter logic principle. To ensure the part's full function, a voltage of 1.65V~5.5V is needed. Extended operating temperature around -55°C~125°C. The part is mounted in Surface Mount. The high and low state of output current is 8mA 8mA. It comes from the MiniGate™ series. There are 6 terminations totally. The part has 1 functions that significantly boost the user experience. It represents the 1G product family. 6 pins are injected into the part body. Surface Mount mounted, this logic device is widely used in many applications. Please refer to the datasheets for 6 pins functions. In the quiescent state, the part has 1μA current flowing through it. This device is composed of 1 circuits. The part bears a load capacitance of 50pF. The supply voltage should not exceed 5.5V. It is packed with the industry TAPE AND REEL method.
NLU1G04CMUTCG Features
Inverter Logic Type
Operating Temperature: -55°C~125°C
1G Family
Quiescent Current: 1μA
NLU1G04CMUTCG Applications
There are a lot of ON Semiconductor
NLU1G04CMUTCG Gates and Inverters applications.
- Air conditioner
- Home theater
- Electric grinding wheel
- Electrical tools
- Sewing machine
- DVD
- VCD
- Computer
- Television
- Washing machine
