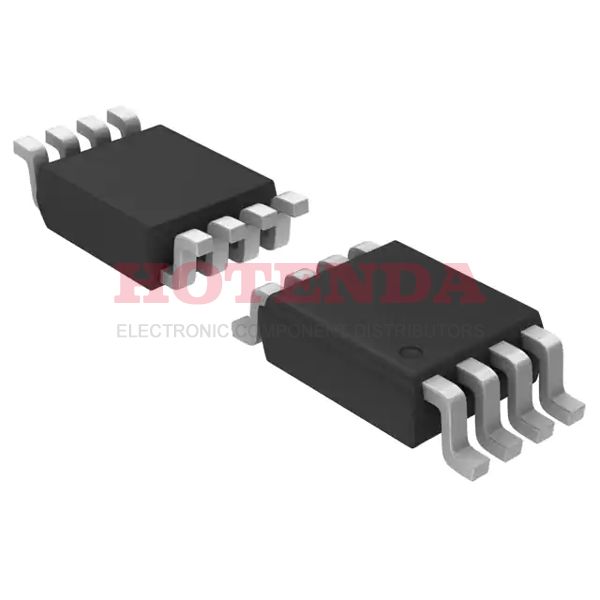

NL27WZ00USG Overview
Due to its 8-VFSOP (0.091, 2.30mm Width) packaging, the part is convenient for international shipping. High reliability is achieved by using advanced packaging method Tape & Reel (TR). NAND Gate logic is the basis of its operation. This part needs a voltage of 1.65V~5.5V to function properly. An extended operating temperature of -55°C~125°C degrees Celsius. Part Surface Mount is mounted. High and low output current states are both 32mA 32mA. The series 27WZ contains it. A total of 8 terminations have been recorded. It has 2 functions that enhance user experience significantly. Use 27WZ00 when searching for device variants. Part bodies are injected with 8 pins. There are many applications for this logic device, mounted at Surface Mount. You can find the functions of the 8 pins in the datasheets. As the part is in a quiescent state, it has 1μA current flowing through it. A 50pF load capacitance is present in the part. It reaches 5.5V when the supply voltage is maximal (Vsup). A method of industry TAPE AND REEL is included in the package. According to the datasheets, the part requires 3.3V power supplies. 32mA is the output current of the device. A device with 1 outputs is available. The operation of 2 gates is logical. This part outputs a TTL.
NL27WZ00USG Features
NAND Gate Logic Type
Operating Temperature: -55°C~125°C
Quiescent Current: 1μA
Output Current: 32mA
2 Gates
