Name: NCV8501PDWADJ
Brand: ON Semiconductor
SKU: NCV8501PDWADJ
Availability: InStock

new-10%

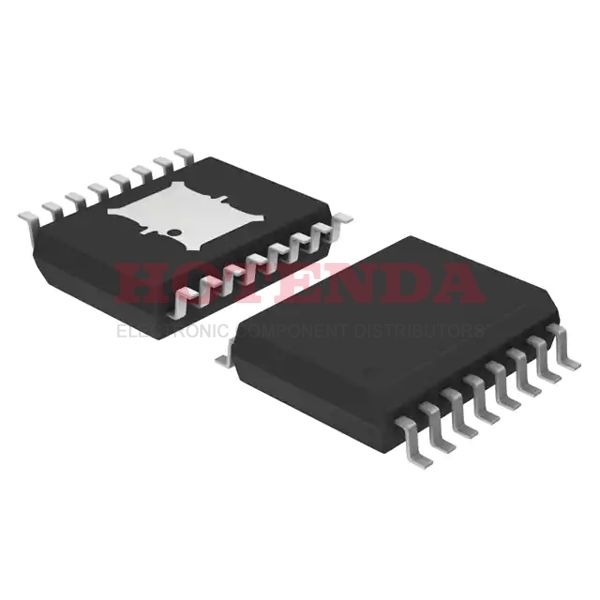

NCV8501PDWADJ

Manufacturer part number:NCV8501PDWADJ

Manufacturer:ON Semiconductor

Description:Enable Adjustable NCV8501 PMIC Automotive, AEC-Q100 Series 16 16-SOIC (0.295, 7.50mm Width) Exposed Pad

Case Package:SOT-23

Datasheet:NCV8501PDWADJ Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	OBSOLETE (Last Updated: 1 week ago)
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	16-SOIC (0.295, 7.50mm Width) Exposed Pad
Number of Pins	16
Operating Temperature	-40°C~150°C
Packaging	Tube
Series	Automotive, AEC-Q100
Published	2009
JESD-609 Code	e0
Pbfree Code	no
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	16
ECCN Code	EAR99
Terminal Finish	Tin/Lead (Sn80Pb20)
Packing Method	RAIL
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	240
Number of Functions	1
Reach Compliance Code	not_compliant
Time@Peak Reflow Temperature-Max (s)	30
Base Part Number	NCV8501
Pin Count	16
Current - Supply (Max)	19mA
Number of Outputs	1
Qualification Status	Not Qualified
Voltage - Input (Max)	45V
Output Voltage	5V
Output Type	Adjustable
Output Configuration	Positive
Current - Output	150mA
Control Features	Enable
Voltage - Output (Min/Fixed)	1.28V
Number of Regulators	1
Min Input Voltage	-15V
Protection Features	Over Temperature, Reverse Polarity, Short Circuit
Current - Quiescent (Iq)	75μA
Voltage Dropout (Max)	0.6V @ 150mA
Dropout Voltage	400mV
Dropout Voltage1-Nom	0.4V
Voltage - Output (Max)	44.4V
Min Current Limit	151mA
Input Bias Current	90μA
Load Regulation-Max(%)	2.4%
Height Seated (Max)	2.65mm
Width	7.5mm
RoHS Status	Non-RoHS Compliant
Lead Free	Contains Lead

NCV8501PDWADJ Product Details

NCV8501PDWADJ Overview

This Voltage Regulator IC comes inTube packaging. Packaged in a 16-SOIC (0.295, 7.50mm Width) Exposed Pad case, the battery regulator IC is protected from damage during shipment. There are 16 terminations on the gadget. The IC chip's output type is Adjustable. This electronic component implements 1 regulators. The Linear Voltage Regulator's mounting type is Surface Mount. The IC Regulator is set to operate at -40°C~150°C degrees. This regulator's output function is configured to be Positive. Its current output stands at 150mA. There are totally 16 pins on this chip. To ensure prompt, sufficient performance, this part features 1 outputs in total. Its dropout voltage is 10 volts. The component's pin number remains 16. FYI, the basic part number for this IC regulator is NCV8501. The way of packing the voltage regulator IC is RAIL. It is part of the Automotive, AEC-Q100 Series.
