NCV7808BTG Overview

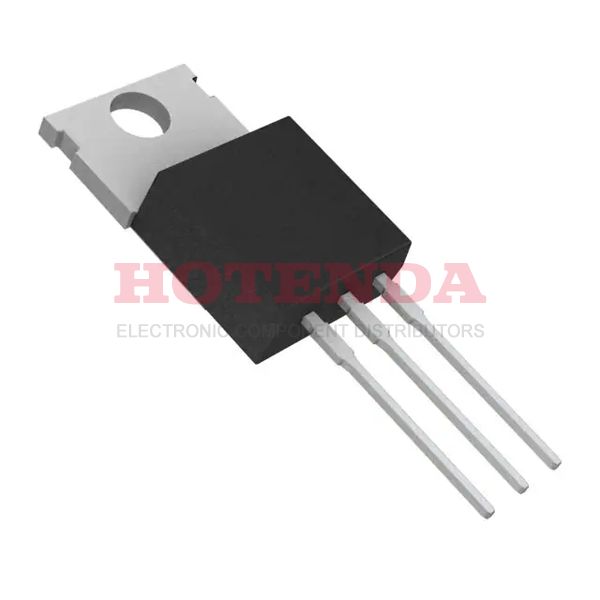

A Tube case is used to deliver this IC regulator. This voltage regulator IC comes in a TO-220-3 case. On the regulater IC chip, there are a total of 3 terminations. Output type Fixed. This component features 1 Voltage regulators. As a result of the Linear Voltage Regulator's design, the operating temperature of Through Hole can be adjusted within a specified range. There is a temperature range of -40°C~125°C degrees during operation of the IC regulator. There is a configuration in this voltage regulator IC that specifies that its output function is Positive. A total of 3 pins can be found on the board. In order to deliver prompt, sufficient and reliable performance, this regulator IC has 1 outputs in total. A dropout voltage of 10 volts can be obtained from this voltage regulator IC. There are 3 pins on the chip. As an FYI, this IC voltage regulator has the basic part number NCV7808. As you can see from the picture, the regulator IC is packed in a certain way. Taking into account the operation requirements, the maximum output current of the IC voltage regulator reaches 1A. It operates in the 3.3mA Quiescent Current state. This model is a part of the Automotive, AEC-Q100 Series and is of high quality.
NCV7808BTG Features
2V dropout voltage
RAIL method of packing
NCV7808BTG Applications
There are a lot of ON Semiconductor
NCV7808BTG Linear Voltage Regulators applications.
- Video equipment
- CPU power supply
- Switching regulator
- Multiple-power supply system
- Digital audio player
- Digital TV
- Smartcard
- Industrial equipment
- DVD and CD-ROM drive
- Quick charge protocols
