NCV4269PDR2G Overview

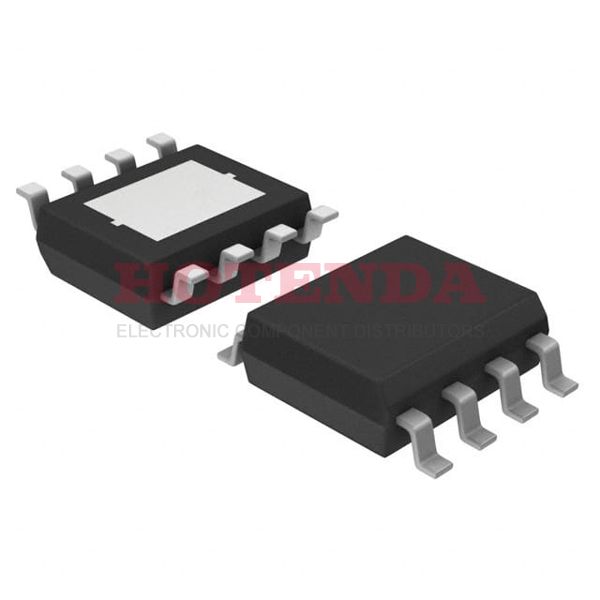

A Tape & Reel (TR) case is used to deliver this IC regulator. This voltage regulator IC comes in a 8-SOIC (0.154, 3.90mm Width) Exposed Pad case. On the regulater IC chip, there are a total of 8 terminations. Output type Fixed. This component features 1 Voltage regulators. As a result of the Linear Voltage Regulator's design, the operating temperature of Surface Mount can be adjusted within a specified range. There is a temperature range of -40°C~125°C degrees during operation of the IC regulator. There is a configuration in this voltage regulator IC that specifies that its output function is Positive. A total of 8 pins can be found on the board. A dropout voltage of 10 volts can be obtained from this voltage regulator IC. There are 8 pins on the chip. As an FYI, this IC voltage regulator has the basic part number NCV4269. Taking into account the operation requirements, the maximum output current of the IC voltage regulator reaches 150mA. This model is a part of the Automotive, AEC-Q100 Series and is of high quality.
NCV4269PDR2G Features
250mV dropout voltage
NCV4269PDR2G Applications
There are a lot of ON Semiconductor
NCV4269PDR2G Linear Voltage Regulators applications.
- Video equipment
- CPU power supply
- Switching regulator
- Multiple-power supply system
- Digital audio player
- Digital TV
- Smartcard
- Industrial equipment
- DVD and CD-ROM drive
- Quick charge protocols
