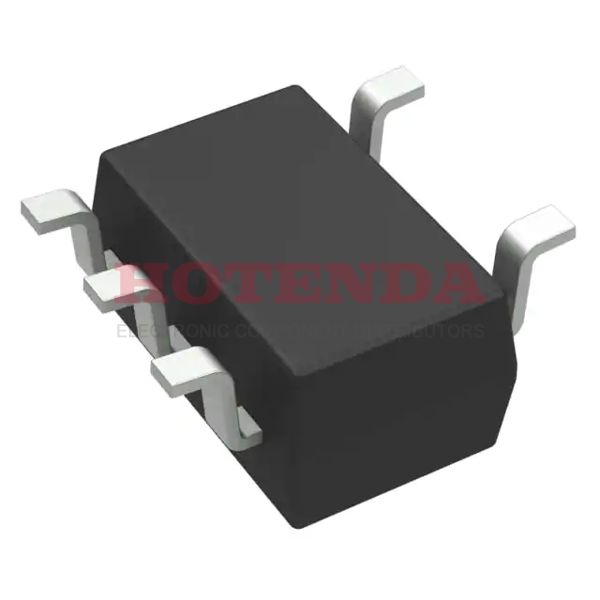

NCS2200SN1T1G Overview
The product is packaged in SOT-23-5 Thin, TSOT-23-5 in order to facilitate transportation.Output type of this comparator is Complementary, Rail-to-Rail .The part is shipped by Tape & Reel (TR) .The comparator has 5 terminals.The electrical component in this case belongs to the Comparator family.This comparator is capable of handling a wide range of tasks if it is supplied with a voltage of 3V .This is a typical comparator of type General Purpose .Currently, it consists of only 1 elements.The device includes 5 pins.In general, mounting type Surface Mount is recommended.Ideally, the operating temperature should be set at -40°C~105°C in order to prevent malfunction.5 pins are available on the comparator.In order to find a solution that meets your specific needs, search NCS220* for more pin-to-pin solutions.A quiescent current of 17μA is observed in this comparator.Normal use of the device should require a nominal supply current of 15μA .An excess of current supply over 15μA could result in malfunction of the comparator.You are allowed to input a maximum current of 1pA into the device.The part belongs to the NCS2200 series of comparator parts.
NCS2200SN1T1G Features
Complementary, Rail-to-Rail output capability
General Purpose IC
Employing 1 elements
Operates under -40°C~105°C
Quiescent Current: 17μA
NCS2200SN1T1G Applications
There are a lot of ON Semiconductor
NCS2200SN1T1G linear comparators applications.
- Self-diagnostics
- Lithium ion battery monitoring
- Battery management and protection
- Current and voltage sensing
- Analog front end
- Power management
- Point of load regulators
- DC/DC and AC/DC power supplies
- System control and monitoring
- Wearable Devices
