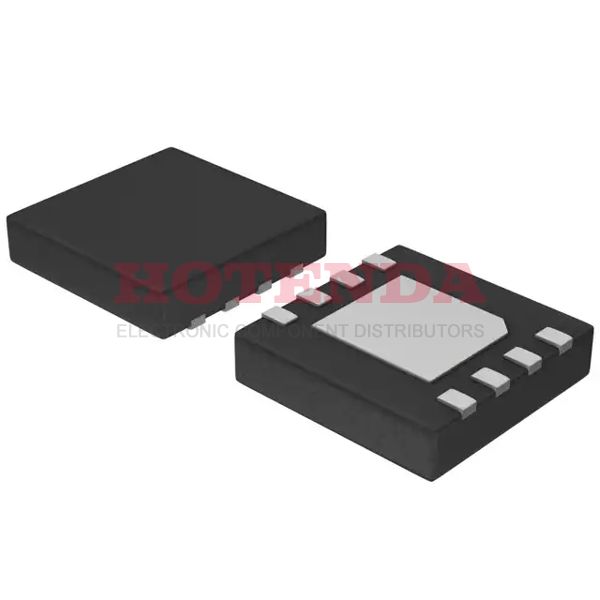

NCP59151MN50TYG Overview
In a Tape & Reel (TR) case, the IC voltage regulator is delivered. A 8-VDFN Exposed Pad case contains the Liner IC. In total, there are 8 terminations on the gadget. This PMIC chip has an output type of Fixed. In this electrical part, there are 1 regulators that are implemented. Voltage Regulated IC Surface Mount varies its operating temperature range. The IC Voltage Regulator's operating temperature is -40°C~125°C degrees. Currently, this regulator IC has an output function configured as Positive as its output function. There are 8 pins in total on this board. Featuring 1 outputs in total, this voltage regulator IC enables prompt, sufficient performance regardless of the application. There is a 10 volt dropout voltage on this transistor. A 8-pin is present on the chip. It is NCP59151MN50 for this voltage regulator IC, just for your information. A packing method for the IC regulator is TAPE AND REEL, which means it is packed in a certain way. A maximum output current of 1.5A is required to meet the operation requirements. It operates in the 80mA Quiescent Current state. The top supply voltage is 13.5V volts.
NCP59151MN50TYG Features
300mV dropout voltage
TAPE AND REEL method of packing
NCP59151MN50TYG Applications
There are a lot of ON Semiconductor
NCP59151MN50TYG Linear Voltage Regulators applications.
- Portable telephone
- Electronic notebook
- Camera
- Video equipment
- CPU power supply
- Switching regulator
- Multiple-power supply system
- Digital audio player
- Digital TV
- Smartcard
