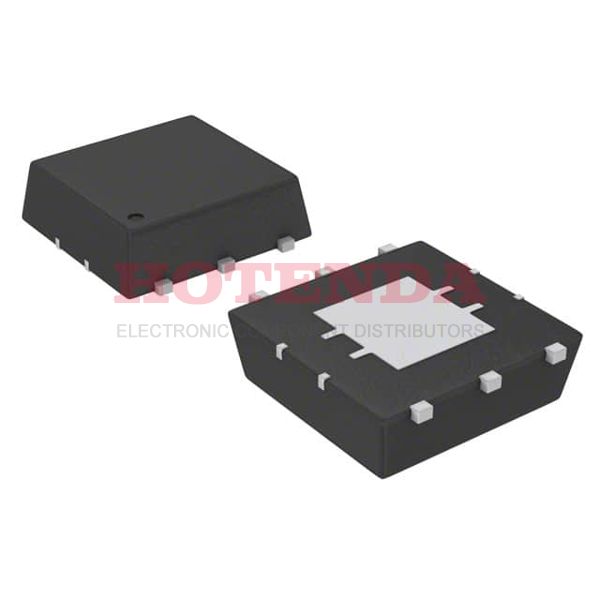

NCP585LSAN12T1G Overview
The package is delivered in a Tape & Reel (TR) case. In order to package the IC voltage regulator, a 6-SMD, Flat Lead Exposed Pad case is used. On the Voltage regulator IC, there are 6 terminations that can be connected. This IC Regulator has a type of output called Fixed. There are 1 regulators implemented in this electroic component. Surface Mount can be adjusted in the Linear IC in order to vary the temperature range over which Linear Regulator operates. The IC voltage regulator must be maintained at -40°C~85°C degrees for it to function. As you can see, this regulator's output function is configured to be Positive. At present, it can produce an output of up to 300mA. As you can see, the regulator IC has a total of 6 pins. The regulator has a total of 1 outputs to make sure that it delivers prompt, sufficient outputs. A dropout voltage of 10 volts is what makes it a dropout voltage. Depending on the chip, 6 pins may be available. For your information, part number NCP585 is the basic part number for this voltage regulator IC. There is a TAPE AND REEL way of packing the IC voltage regulators in the box.
NCP585LSAN12T1G Features
480mV dropout voltage
TAPE AND REEL method of packing
NCP585LSAN12T1G Applications
There are a lot of ON Semiconductor
NCP585LSAN12T1G Linear Voltage Regulators applications.
- CPU power supply
- Switching regulator
- Multiple-power supply system
- Digital audio player
- Digital TV
- Smartcard
- Industrial equipment
- DVD and CD-ROM drive
- Quick charge protocols
- Measurement and control euipment
