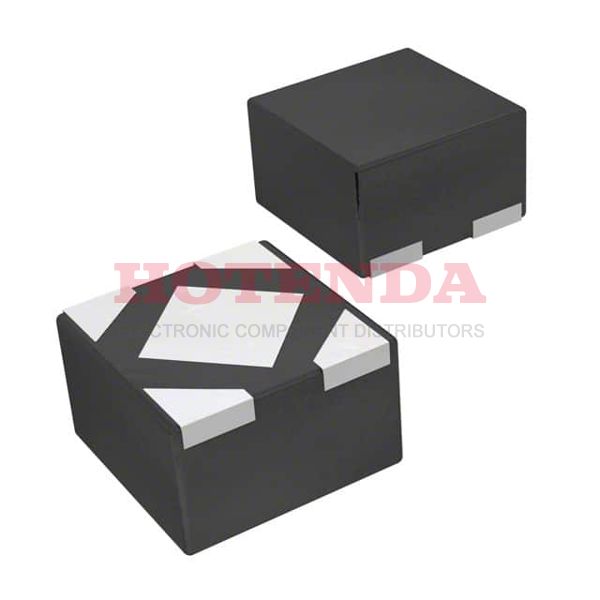

NCP4586DMU18TCG Overview
An Tape & Reel (TR) case is included with the delivery. There is a 4-UDFN Exposed Pad case with the integrated voltage regulator. There are 4 terminations on the battery regulator IC chip and each of them has its own function. In terms of output type, Fixed is what the Regulator IC produces. The electronic component implements 1 Voltage regulator ICs. IC Regulator is possible to alter the range of the operating temperature of Surface Mount in the device. In order for this IC voltage regulator to operate, the temperature has to be kept at -40°C~85°C degrees. In this case, the output function that is configured for this regulator IC is Positive. It has a total of 4 pins on IC voltage regulator. In terms of its dropout voltage, it is 10 volts. There are 4 pins on the chip. It is NCP4586 for this regulator, just for your information. In order to meet the operating requirements of the regulator, its maximal output current reaches 150mA. It operates in the 58μA Quiescent Current state.
NCP4586DMU18TCG Features
460mV dropout voltage
NCP4586DMU18TCG Applications
There are a lot of ON Semiconductor
NCP4586DMU18TCG Linear Voltage Regulators applications.
- Camera
- Video equipment
- CPU power supply
- Switching regulator
- Multiple-power supply system
- Digital audio player
- Digital TV
- Smartcard
- Industrial equipment
- DVD and CD-ROM drive
