NCP186BMX175TAG Overview

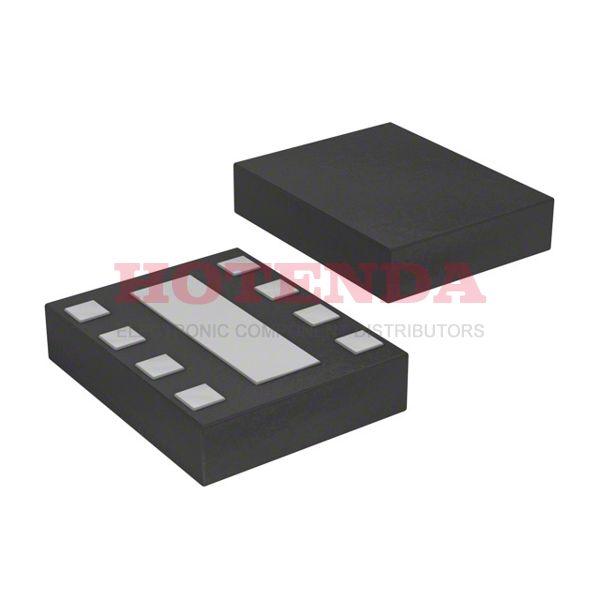

The package is delivered in a Tape & Reel (TR) case. In order to package the IC voltage regulator, a 8-XFDFN Exposed Pad case is used. On the Voltage regulator IC, there are 8 terminations that can be connected. This IC Regulator has a type of output called Fixed. There are 1 regulators implemented in this electroic component. Surface Mount can be adjusted in the Linear IC in order to vary the temperature range over which Linear Regulator operates. The IC voltage regulator must be maintained at -40°C~125°C degrees for it to function. As you can see, this regulator's output function is configured to be Positive. A dropout voltage of 10 volts is what makes it a dropout voltage. Depending on the chip, 8 pins may be available. There is a maximum output current of 1A for this regulator to meet the operational requirements. It operates in the 90μA Quiescent Current state.
NCP186BMX175TAG Features
180mV dropout voltage
NCP186BMX175TAG Applications
There are a lot of ON Semiconductor
NCP186BMX175TAG Linear Voltage Regulators applications.
- CPU power supply
- Switching regulator
- Multiple-power supply system
- Digital audio player
- Digital TV
- Smartcard
- Industrial equipment
- DVD and CD-ROM drive
- Quick charge protocols
- Measurement and control euipment
