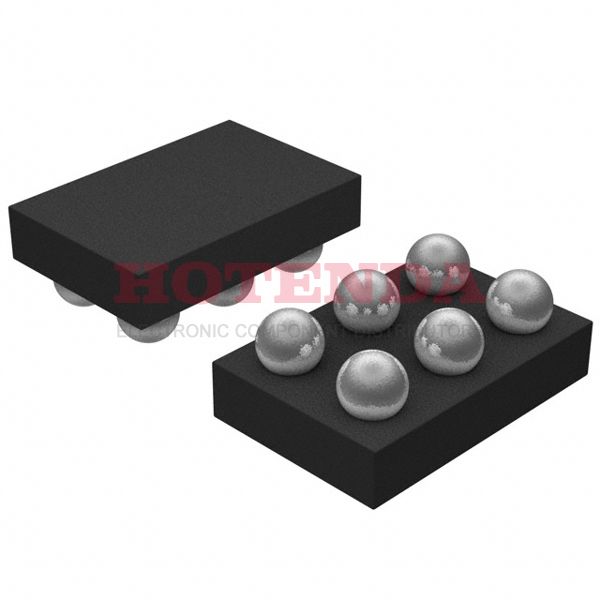

Name: NCP139AFCT120T2G
Brand: ON Semiconductor
SKU: NCP139AFCT120T2G
Price: 0.24000 USD
Availability: InStock

new-10%

NCP139AFCT120T2G

Manufacturer part number:NCP139AFCT120T2G

Manufacturer:ON Semiconductor

Description:Enable Fixed 0.4mm PMIC 6-XFBGA, WLCSP

Case Package:SOT-23

Datasheet:NCP139AFCT120T2G Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 6 days ago)
Factory Lead Time	10 Weeks
Mounting Type	Surface Mount
Package / Case	6-XFBGA, WLCSP
Surface Mount	YES
Operating Temperature	-40°C~85°C TA
Packaging	Tape & Reel (TR)
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Number of Terminations	6
Terminal Finish	Tin (Sn)
Terminal Position	BOTTOM
Terminal Form	BALL
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Number of Functions	1
Terminal Pitch	0.4mm
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
JESD-30 Code	R-PBGA-B6
Voltage - Input (Max)	5.5V
Output Type	Fixed
Output Configuration	Positive
Current - Output	1A
Control Features	Enable
Output Voltage 1	1.2V
Voltage - Output (Min/Fixed)	1.2V
Number of Regulators	1
Protection Features	Over Current, Over Temperature, Under Voltage Lockout (UVLO)
Current - Quiescent (Iq)	50μA
Voltage Dropout (Max)	1.5V @ 1A
PSRR	85dB ~ 70dB (1kHz)
Height Seated (Max)	0.33mm
Width	0.8mm
RoHS Status	ROHS3 Compliant

NCP139AFCT120T2G Product Details

NCP139AFCT120T2G Overview

The package contains a Tape & Reel (TR) case. In 6-XFBGA, WLCSP cases, it is packaged. This gadget has 6 terminations on it, each with a different function. Fixed is the IC Voltage Regulator's output type. A total of 1 regulators are implemented in this eletric component. Surface Mount operating temperature varies depending on the IC Voltage Regulator. The Regulator IC chip is set to operate at -40°C~85°C TA degrees. It has been configured that the output function of this IC regulator is Positive. There is an output of 1A at the moment.
