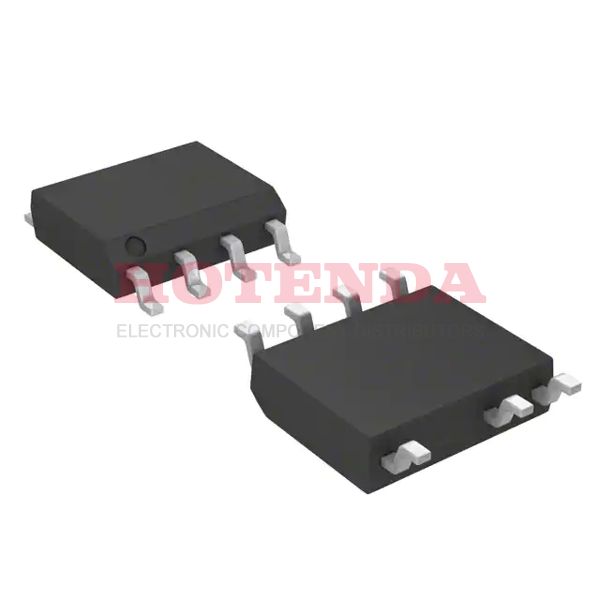

NCP1234BD65R2G Overview
In the 8-SOIC (0.154, 3.90mm Width), 7 Leads package, the ac to dc converter is embedded.In Tape & Reel (TR) case, the ac dc converter is available.There is a AC/DC converter mounted in the way of Surface Mount .It is recommended that the ac dc converter be operated at a temperature of -40°C~150°C TJ °C in order to achieve its full performance.The AC DC converter uses a type SWITCHING CONTROLLER analog integrated circuit.This AC/DC converter is suitable for operation in the range of 9.5V~28V supply voltage (Vcc/Vdd).Total terminations are 7 .It contains 7 pins.The ac-dc converter has 7 pins.The ac dc converters is suitable for mounting by Surface Mount .It is possible to search for similar acdc converters by using the NCP1234 family.There are 1 outputs to be run.AC to DC converter is contained in Switching Regulator or Controllers .We have set the output current to 500mA .A high efficiency is achieved when operating at a frequency of 65kHz .On the basis of a unique technique, it is possible to ensure an input voltage with the maximum value of 28V .
NCP1234BD65R2G Features
Packaged with 8-SOIC (0.154, 3.90mm Width), 7 Leads
With 7 pins
Output Current at 500mA
NCP1234BD65R2G Applications
There are a lot of ON Semiconductor NCP1234BD65R2G AC DC Converters applications.
- AC/DC Adaptors/Chargers for PDAs
- Standby power supplies for TV
- Adapter/Charger for Cell
- Networking
- USB-PD 2.0
- Appliances
- Z-Wave
- Dimmers
- Charger
- Portable Apparatus
