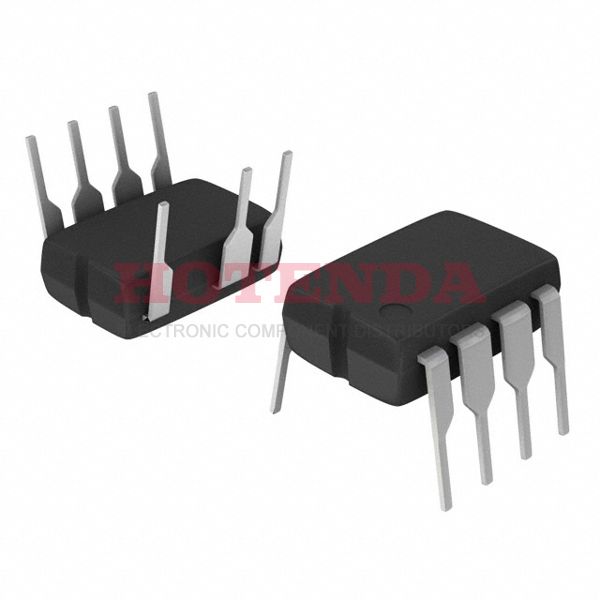

NCP1230P65 Overview
An embedded ac to dc converter is included in 8-DIP (0.300, 7.62mm), 7 Leads package.The ac dc converter is available in Tube case.As you can see, this AC/DC converter is mounted in the way of Through Hole .The ac dc converter should be operated at a temperature of -40°C~125°C TJ °C to deliver its optimal performance.This AC DC converter employs SWITCHING CONTROLLER analog IC type.As soon as the switching frequency reaches 65kHz , the circuit is closed.Vcc/Vdd can be used within the range of 7.7V~18V supply voltage.A total of 7 terminations have been recorded.There are 7 pins on this ac/dc converter.There are 7 pins in total.Based on the NCP1230 family, you can search for similar acdc converters.Switching Regulator or Controllers contains the ac to dc conversions.An amount of current of 0.5A is the maximum that can be supplied to the ac to dc inverter.It is also possible to determine PULSE FREQUENCY MODULATION TECHNIQUE IS ALSO POSSIBLE using this ACDC converter.
NCP1230P65 Features
Packaged with 8-DIP (0.300, 7.62mm), 7 Leads
Switching Frequency at 65kHz
With 7 pins
NCP1230P65 Applications
There are a lot of ON Semiconductor NCP1230P65 AC DC Converters applications.
- Humidifier
- Standby power
- Set-top boxes
- Linear Adapter Replacements
- Lighting controls
- Battery chargers for cordless
- Chargers for cell/cordless phones
- Replaces linear transformers
- Low power ac?dc Adapters for Chargers
- MPS parts
