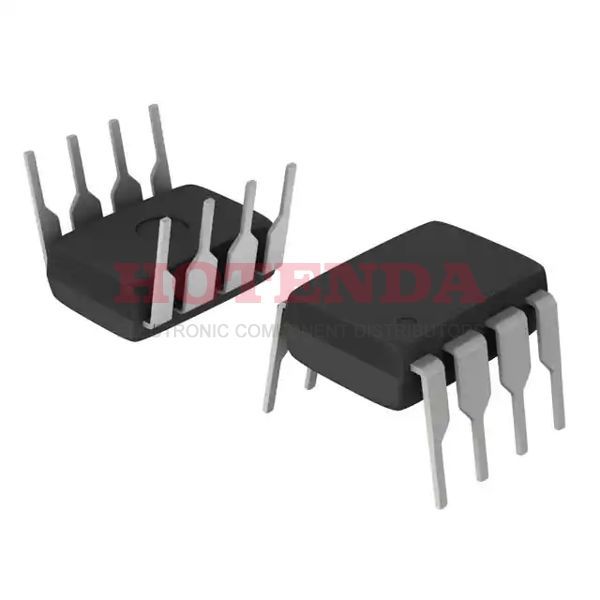

NCP1200P40 Overview
The ac to dc converter is embedded in 8-DIP (0.300, 7.62mm) package.The AC/DC power converter is available in Tube .In this case, the AC/DC converter is mounted in the way of Through Hole .The ac dc converter needs to be operated at -25°C~125°C TJ °C in order to perform.In this AC DC converter, an analog integrated circuit (IC) of type SWITCHING CONTROLLER is employed.Vcc/Vdd can be used within the range of 16V Max supply voltage.Total terminations are 8 .On the ac/dc converter, there are 8 pins.In this ac-dc converter, there are 8 pins.It is possible to search for similar acdc converters by using the NCP1200 family.A total of 1 outputs are to be processed.AC to DC converter is included in Switching Regulator or Controllers .250mA is set as the output current.The power AC DC is capable of high efficiency when operated at a frequency of 40kHz .During a 16V -voltage supply, the interface IC conducts.
NCP1200P40 Features
Packaged with 8-DIP (0.300, 7.62mm)
With 8 pins
Output Current at 250mA
Operating Supply Voltage at the range of 16V
NCP1200P40 Applications
There are a lot of ON Semiconductor NCP1200P40 AC DC Converters applications.
- Adapter/Charger for Cell
- AC/DC LED Driver applications
- Remotely-controlled appliances
- Auxiliary Power Supply
- Lighting controls
- AC-DC Output Power Conversion Applications
- Shaver Charger
- Linear Adapter Replacements
- LED lights
- Chargers for cell/cordless phones
