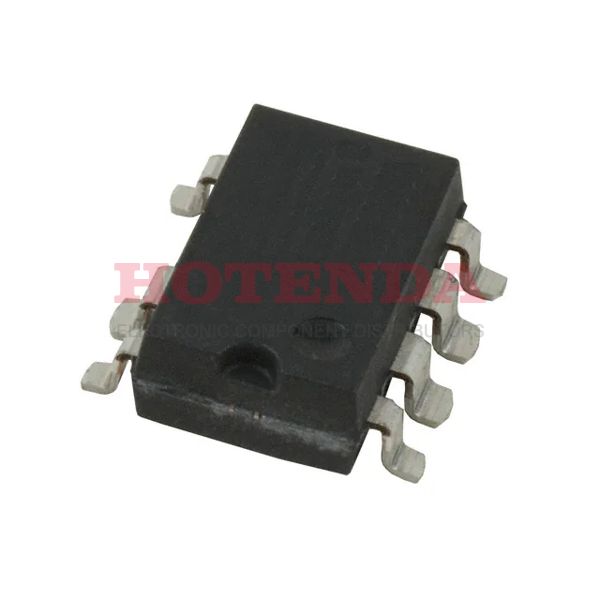

NCP1014APL100R2G Overview
It is embedded in package 8-SMD (7 Leads), Gull Wing .There is a AC/DC power converter of Tape & Reel (TR) available.In this case, the AC/DC converter is mounted in the way of Surface Mount .To deliver its performance, the ac dc converter should be operated at a temperature of -40°C~150°C TJ .In this AC to DC transformer, the switching frequency is 100kHz .This AC/DC converter is designed for use within the range of 8.5V~10V supply voltage (Vcc/Vdd).There are 7 pins on this ac/dc converter.The ac dc converters is suitable for mounting by Surface Mount .A similar acdc converter can be searched by using the NCP1014 family.There are 1 outputs to run.A high efficiency is achieved when operating at a frequency of 100kHz .In the following link, you will find the REACH SVHC standard: No SVHC .The AC to DC converter input voltage can be powered under 250V .An input voltage of less than 100V V is required to operate the AC to DC inverter.It is provided with 7-PDIP, Gullwing packages.The maximum 150°C ensures that the AC to DC power converter runs stablily.Temperatures below -40°C degrees Celsius are not permitted for this isolated switch.
NCP1014APL100R2G Features
Packaged with 8-SMD (7 Leads), Gull Wing
Switching Frequency at 100kHz
With 7 pins
NCP1014APL100R2G Applications
There are a lot of ON Semiconductor NCP1014APL100R2G AC DC Converters applications.
- Standby Power Supplies
- Low power ac?dc Adapters for Chargers
- Charger
- ZigBee
- WiFi Wireless
- Digital cameras
- Standby power supplies for TV
- Tablets
- Rice Cooker
- Standby Power Supplies
