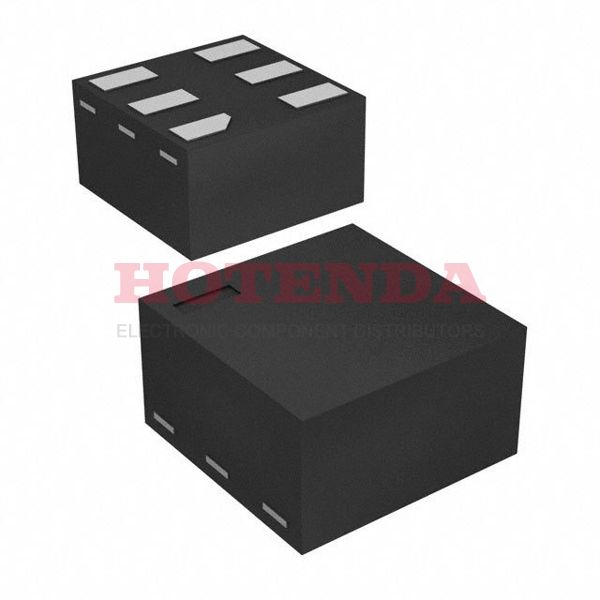

NC7WZ04FHX Overview
As the part is packed in 6-UFDFN, international shipping is convenient. A high level of reliability can be achieved through the use of an advanced packaging method Tape & Reel (TR). This logic works according to the Inverter principle. Ensure the part's full functionality by setting the voltage to 1.65V~5.5V. Operating temperature extended to -40°C~85°C. It is mounted in position Surface Mount. 32mA 32mA is the output current's high and low states. 7WZ is its series number. Total terminations are 6. Users will benefit significantly from 2 functions in this part. There is a chip like this in LVC/LCX/Z. Trying searching with 7WZ04 will yield device variants. The logic device can be mounted on the Surface Mount axis and is used in a wide range of applications. Datasheets for 6 pin functions are available upon request. Quiescent parts carry 1μA current. There are 2 circuits in this device. Part now bears a 50pF load capacitance. When 5.5V is reached, the maximum supply voltage (Vsup) is reached. In addition to this, it is packed with the industry TAPE AND REEL method. A 3.3V power supply is specified in the datasheet for this part.
NC7WZ04FHX Features
Inverter Logic Type
Operating Temperature: -40°C~85°C
LVC/LCX/Z Family
Quiescent Current: 1μA
NC7WZ04FHX Applications
There are a lot of ON Semiconductor
NC7WZ04FHX Gates and Inverters applications.
- DVD
- VCD
- Computer
- Television
- Washing machine
- Range hood
- Refrigerator
- VCR
- Massager
- Fan
