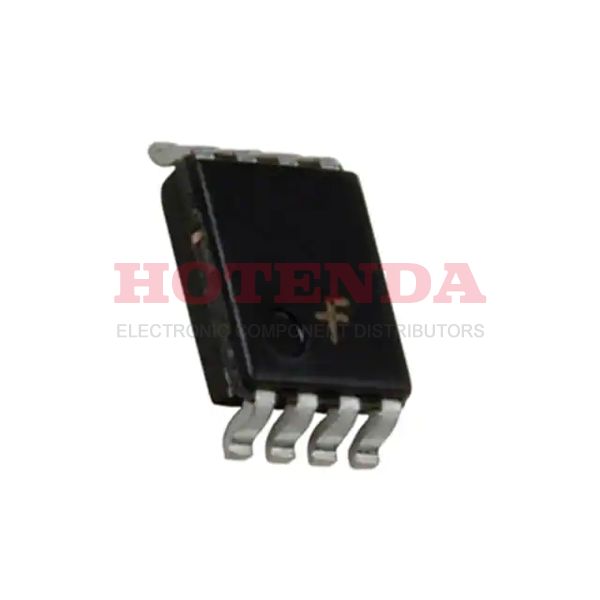

NC7WZ00K8X Overview
This part is conveniently packaged in 8-VFSOP (0.091, 2.30mm Width), making it easy to ship abroad. This high-reliability packaging method uses advanced packaging methods Tape & Reel (TR). NAND Gate logic governs its operation. Voltage 1.65V~5.5V ensures the part's full functionality. Operation at a temperature around -40°C~85°C. A Surface Mount mount is used for this part. Current output is 32mA 32mA in both the high and low states. The number 7WZ refers to it. In total, there have been 8 terminations. A significant improvement in the user experience can be achieved by the part since it has 2 functions. There is a chip in this package that is a part of LVC/LCX/Z. Search with 7WZ00 if you are looking for device variants. It is widely used in a variety of applications due to its Surface Mount mounting. To find out what the 8 pins do, please refer to the datasheets. Parts that are quiescent have 1μA current flowing through them. In this part, the load capacitance is 50pF. In this case, Vsup reaches its maximum value. There is a method TR in it that is designed for the industry. Datasheets indicate that this part requires 3.3V power supply. Current output of the device is rated at 32mA. As part of the device, there are 1 outputs. An operation based on gates of 2.
NC7WZ00K8X Features
NAND Gate Logic Type
Operating Temperature: -40°C~85°C
LVC/LCX/Z Family
Quiescent Current: 1μA
Output Current: 32mA
2 Gates
