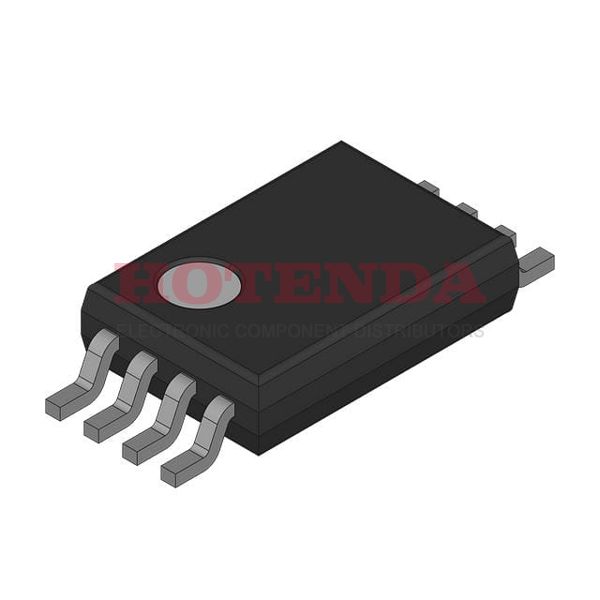

NC7WP02K8X Overview
Due to its 8-VFSOP (0.091, 2.30mm Width) packaging, the part is convenient for international shipping. High reliability is achieved by using advanced packaging method Tape & Reel (TR). NOR Gate logic is the basis of its operation. This part needs a voltage of 0.9V~3.6V to function properly. An extended operating temperature of -40°C~85°C degrees Celsius. Part Surface Mount is mounted. High and low output current states are both 2.6mA 2.6mA. The series 7WP contains it. A total of 8 terminations have been recorded. It has 2 functions that enhance user experience significantly. In P, this chip plays an important role. Use 7WP02 when searching for device variants. There are many applications for this logic device, mounted at Surface Mount. You can find the functions of the 8 pins in the datasheets. As the part is in a quiescent state, it has 900nA current flowing through it. A 30pF load capacitance is present in the part. To supply the device, a voltage of 0.9V must be applied. It reaches 3.6V when the supply voltage is maximal (Vsup). A method of industry TAPE AND REEL is included in the package. A device with 1 outputs is available. The operation of 2 gates is logical.
NC7WP02K8X Features
NOR Gate Logic Type
Operating Temperature: -40°C~85°C
P Family
Quiescent Current: 900nA
2 Gates
NC7WP02K8X Applications
There are a lot of ON Semiconductor
NC7WP02K8X Gates and Inverters applications.
- Sewing machine
- DVD
- VCD
- Computer
- Television
- Washing machine
- Range hood
- Refrigerator
- VCR
- Massager
