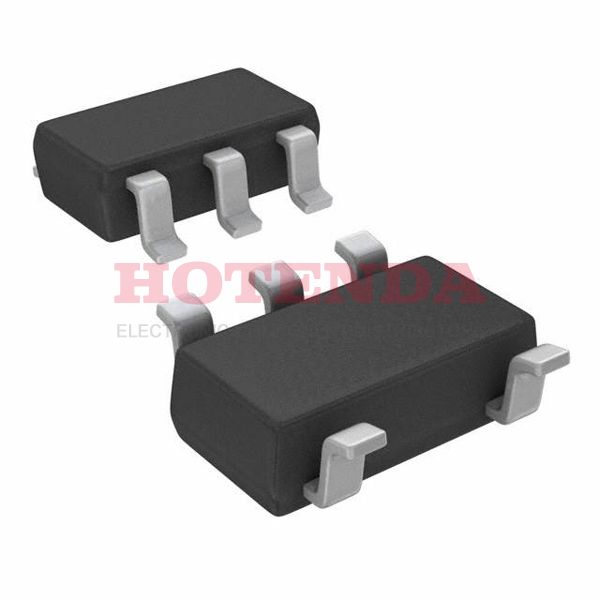

NC7SZ86M5X Overview
Due to its SC-74A, SOT-753 packaging, the part is convenient for international shipping. High reliability is achieved by using advanced packaging method Tape & Reel (TR). XOR (Exclusive OR) logic is the basis of its operation. This part needs a voltage of 1.65V~5.5V to function properly. An extended operating temperature of -40°C~85°C degrees Celsius. Part Surface Mount is mounted. High and low output current states are both 32mA 32mA. The series 7SZ contains it. A total of 5 terminations have been recorded. It has 1 functions that enhance user experience significantly. In LVC/LCX/Z, this chip plays an important role. Use 7SZ86 when searching for device variants. There are many applications for this logic device, mounted at Surface Mount. You can find the functions of the 5 pins in the datasheets. It supports inputs of 2. As the part is in a quiescent state, it has 2μA current flowing through it. A method of industry TAPE AND REEL is included in the package. According to the datasheets, the part requires 3.3V power supplies. The operation of 1 gates is logical.
NC7SZ86M5X Features
XOR (Exclusive OR) Logic Type
Operating Temperature: -40°C~85°C
LVC/LCX/Z Family
Quiescent Current: 2μA
1 Gates
NC7SZ86M5X Applications
There are a lot of ON Semiconductor
NC7SZ86M5X Gates and Inverters applications.
- Sewing machine
- DVD
- VCD
- Computer
- Television
- Washing machine
- Range hood
- Refrigerator
- VCR
- Massager
