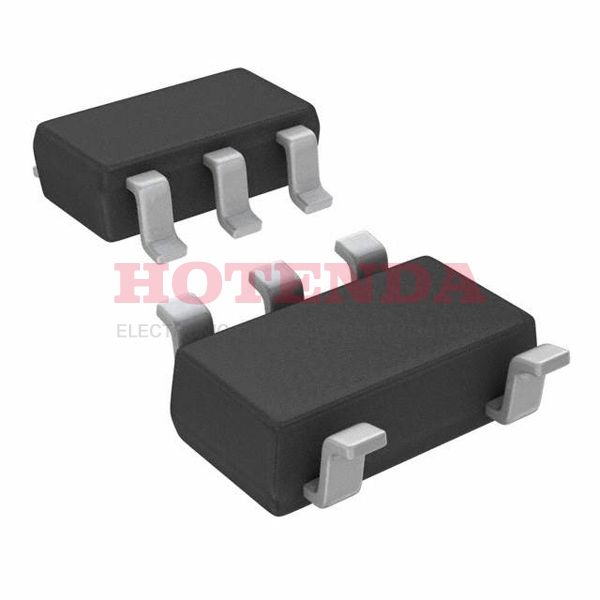

NC7SZ38M5X Overview
The part can be shipped overseas conveniently because it is packaged in SC-74A, SOT-753. In order to provide high reliability, an advanced packaging method Tape & Reel (TR) is used. As a result, it works on the principle of NAND Gate. The part must have a voltage of 1.65V~5.5V in order to function properly. Operating temperature around -40°C~85°C extended. Surface Mount is the mounting position of the part. In the low and high states of output current, the current is - 32mA. This is part of the 7SZ series. In total, there are 5 terminations. 1 functions in the part enhance the user experience significantly. The chip is part of the LVC/LCX/Z family. Use 7SZ38 to search for device variants. Many applications use this logic device with Surface Mount mounting. The functions of 5 pins can be found in the datasheets. There are 2 inputs on this part. When the part is quiescent, 2μA current flows through it. There is an industry TAPE AND REEL method included. The datasheet specifies that the part requires 3.3V volts of power. 24mA is the device's output current rating. A logical operation through a gate of 1. Open Drain is its feature.
NC7SZ38M5X Features
NAND Gate Logic Type
Operating Temperature: -40°C~85°C
LVC/LCX/Z Family
Quiescent Current: 2μA
Output Current: 24mA
1 Gates
NC7SZ38M5X Applications
There are a lot of ON Semiconductor
NC7SZ38M5X Gates and Inverters applications.
- Electrical tools
- Sewing machine
- DVD
- VCD
- Computer
- Television
- Washing machine
- Range hood
- Refrigerator
- VCR
