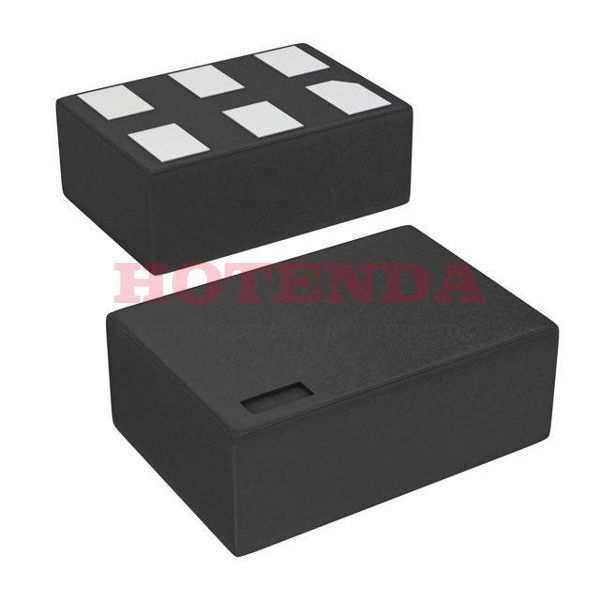

NC7SZ08FHX Overview
The part comes in 6-UFDFN packaging, which makes it convenient to ship overseas. To ensure high reliability, a new packaging method Tape & Reel (TR) is used. A AND Gate logic principle is used to make it work. It is necessary to ensure the full functionality of the part by providing a voltage of 1.65V~5.5V. Around -40°C~85°C is the extended operating temperature. There is a hole in Surface Mount for mounting the part. In both high and low states, output current is 32mA 32mA. This item is from the 7SZ series. In total, 6 terminations have occurred. This part is equipped with 1 functions that will greatly enhance the user's experience. It is part of the LVC/LCX/Z family of chips. 7SZ08 can help you find device variants. Many applications require the use of this logic device with its Surface Mount mounting. Inputs for this part are 2. Parts in quiescent state carry 2μA current. It has a capacitance of 50pF when loaded. Upon reaching 5.5V, the highest supply voltage (Vsup) is reached. Power supplies required for this part are specified in the datasheet as 3.3V. A device rated at 50mA has 50mA output current. This device has 1 outputs.
NC7SZ08FHX Features
AND Gate Logic Type
Operating Temperature: -40°C~85°C
LVC/LCX/Z Family
Quiescent Current: 2μA
Output Current: 50mA
