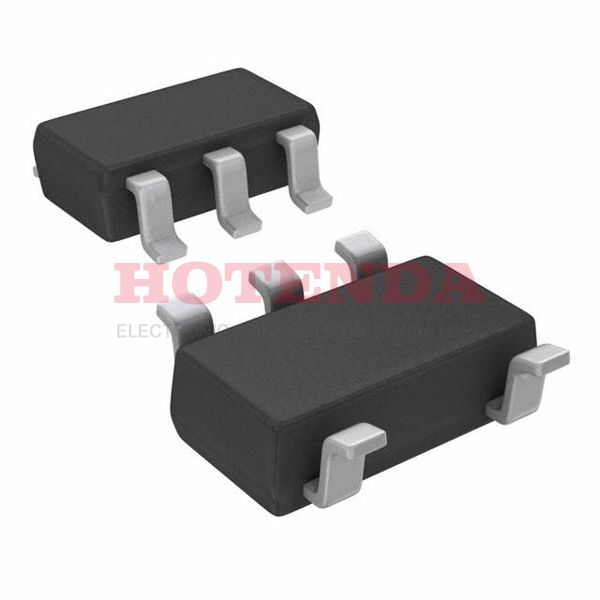

NC7SZ02M5X Overview
The part can be shipped overseas conveniently because it is packaged in SC-74A, SOT-753. In order to provide high reliability, an advanced packaging method Tape & Reel (TR) is used. As a result, it works on the principle of NOR Gate. The part must have a voltage of 1.65V~5.5V in order to function properly. Operating temperature around -40°C~85°C extended. Surface Mount is the mounting position of the part. In the low and high states of output current, the current is 32mA 32mA. This is part of the 7SZ series. In total, there are 5 terminations. 1 functions in the part enhance the user experience significantly. The chip is part of the LVC/LCX/Z family. Use 7SZ02 to search for device variants. Many applications use this logic device with Surface Mount mounting. The functions of 5 pins can be found in the datasheets. There are 2 inputs on this part. When the part is quiescent, 2μA current flows through it. There is an industry TAPE AND REEL method included. The datasheet specifies that the part requires 3.3V volts of power. A logical operation through a gate of 1.
NC7SZ02M5X Features
NOR Gate Logic Type
Operating Temperature: -40°C~85°C
LVC/LCX/Z Family
Quiescent Current: 2μA
1 Gates
