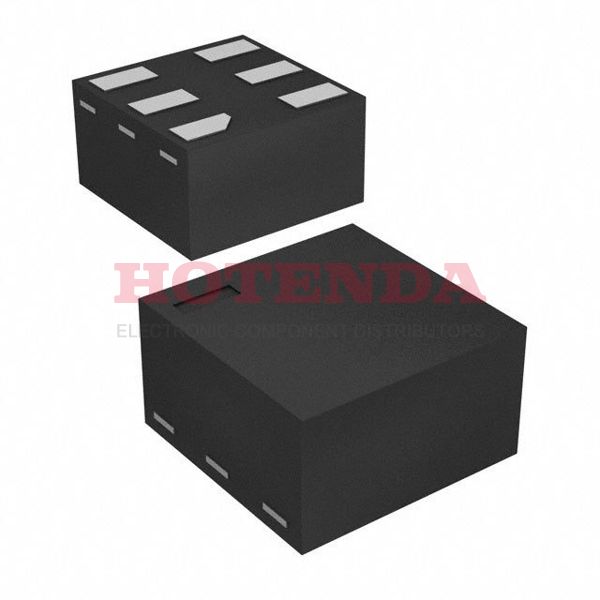

NC7SVL08FHX Overview
Shipping overseas is convenient with the part packed in 6-UFDFN. High reliability is provided by advanced packaging method Tape & Reel (TR). Based on the AND Gate logic principle, it works. A voltage of 0.9V~3.6V is required for the part to function properly. Increasing operating temperature to around -40°C~85°C. In Surface Mount, the part is mounted. There is 24mA 24mA output current in the high or low states. The 7SVL series contains it. Total terminations are 6. User experience is significantly enhanced by the part's 1 functions. The chip is a part of AUP/ULP/V. Try searching with 7SVL08 if you're looking for device variants. This logic device is widely used in a wide variety of applications because it is Surface Mount mounted. For functions related to 6 pins, please refer to the datasheets. 2 inputs are supported by the part. The part has 900nA current flowing through it in the quiescent state. There are 1 circuits in this device. A minimum voltage of 0.9V is required to supply the device.
NC7SVL08FHX Features
AND Gate Logic Type
Operating Temperature: -40°C~85°C
AUP/ULP/V Family
Quiescent Current: 900nA
NC7SVL08FHX Applications
There are a lot of ON Semiconductor
NC7SVL08FHX Gates and Inverters applications.
- Home theater
- Electric grinding wheel
- Electrical tools
- Sewing machine
- DVD
- VCD
- Computer
- Television
- Washing machine
- Range hood
